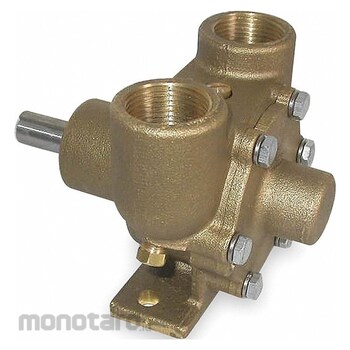

DAYTON Pedestal-Mount Flexible Impeller Utility Pump 3ACB2 Brass, Buna-N Pedestalinlet/Outlet 1in 1pc
Rp7.899.900
Persediaan
Spesifikasi Produk
| Model Number | 3ACB2 |
|---|---|
| Unit | 1pc |
| UNSPSC | 40151504 |
| Housing Material | Brass |
| Impeller Material | Buna-N |
| Maximum Flow Rate (GPM) | 20.5 |
| Maximum Feet of Head (ft) | 85 of head |
| Intake Connection (inch) | 1 NPT |
| Media Intake Connection Size (inch) | 1 |
| Media Intake Connection Type | NPT |
| Discharge Connection (inch) | 1 NPT |
| Discharge Connection Size (inch) | 1 |
| Discharge Connection Type | NPT |
| Maximum Media Temperature (°F) | 180 |
| Maximum Operating Pressure (psi) | 36.7 |
| Required Horsepower (HP) | 1 |
| Maximum Motor Speed (rpm) | 1750 |
| Priming | Self-Priming |
| Shaft (inch) | 5/8 Stainless Steel |
| Shaft Outer Diameter (inch) | 5/8 |
| Shaft Material | Stainless Steel |
| Maximum Suction Lift (ft) | 10.2 |
| Max. Viscosity (SUS) | 5000 |
| Motor Mounting Type | Close Coupled |
| Max. Horsepower (HP) | 1 |
| Flow Rate @ 1ft of Head (Maximum) (gpm) | 20.4 |
| Flow Rate @ 5ft of Head (Maximum) (gpm) | 20.2 |
| Flow Rate @ 10ft of Head (Maximum) (gpm) | 19.6 |
| Flow Rate @ 20ft of Head (Maximum) (gpm) | 18.8 |
| Flow Rate @ 30ft of Head (Maximum) (gpm) | 18 |
| Flow Rate @ 40ft of Head (Maximum) (gpm) | 17 |
| Seal Type | Mechanical |
| Seal Material | Carbon; Ceramic |
| Bearing Material | Carbon Graphite |
| Bearing Type | Ball; Sleeve |
| Duty cycle | Intermittent |
| Overall Length (inch) | 5.7 |
| Overall Width (inch) | 4.7 |
| Overall Height (inch) | 4.3 |
| Impeller Diameter (mm) | 65-1/2 |
| Wetted Material | Brass; Neoprene; Stainless Steel |
| Manufacturer Part Number | 3ACB2 |
| Berat (Kg) | 3.4 |
| Tanggal Produk Terdaftar | 04 April 2024 |
| Terakhir Diperbaharui | 12 May 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Pedestal-mount flexible impeller utility pumps connect to a motor of a compatible horsepower with a belt or pulley.
