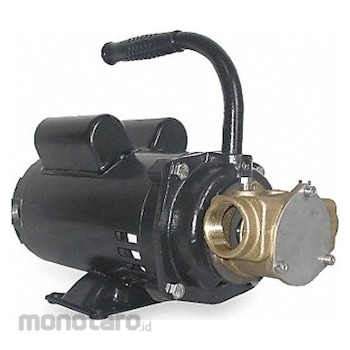

DAYTON Corded Utility Pump 3ABZ6 115 to 230V AC, 80ft of Head Max Head Bronze 3/4HP 115/230V 14.0/7.0Amps 1pc
Rp36.999.900
Persediaan
Spesifikasi Produk
| Model Number | 3ABZ6 |
|---|---|
| Unit | 1pc |
| UNSPSC | 40151504 |
| Manufacturer Part Number | 3ABZ6 |
| Horsepower (HP) | 3/4 |
| Nameplate Voltage (V) | 115 to 230 AC |
| Max. Flow @ 10ft. of Head (gpm) | 20.6 |
| Max. Flow Rate @ 20ft of Head (gpm) | 19.5 |
| Max. Flow Rate @ 30ft of Head (gpm) | 17.8 |
| Maximum Feet of Head (ft) | 80 of head |
| Discharge Size (inch) | 1 |
| Intake Type | FNPT |
| Discharge Type | FNPT |
| Max. Shut Off Pressure (psi) | 34.6 |
| Maximum Media Temperature (°F) | 180 |
| Max. Flow Rate @ 1ft of Head (gpm) | 21.2 |
| For Media Type | Hydraulic Fluids; Petroleum Oils; Silicone Grease |
| Max. Flow Rate @ 50ft of Head (gpm) | 13.6 |
| Maximum Motor Speed (rpm) | 1725 |
| Minimum Media Temperature (°F) | 32 |
| Priming | Self-Priming |
| Motor Enclosure | Open Dripproof |
| Max. Flow Rate @ 40ft of Head (gpm) | 16.5 |
| Frequency (Hz) | 60 |
| Maximum Suction Lift (ft) | 10 |
| Wetted Material | Brass; Buna-N; Stainless Steel |
| Pump Housing Material | Brass |
| Overall Height (inch) | 10.7 |
| Overall Length (inch) | 15.6 |
| Overall Width (inch) | 6.5 |
| Housing Material | Brass |
| Intake Size (inch) | 1 |
| Intake Connection (inch) | 1 FNPT |
| Discharge Connection (inch) | 1 FNPT |
| Prime Type | Self-Priming |
| Impeller Material | Buna-N |
| Max. Viscosity (SUS) | 5000 |
| Compatible Motor Frame | 56YZ |
| Current (A) | 8 |
| Phase | Single |
| Seal Type | Lip |
| Shaft Material | Stainless Steel |
| Bearing Type | Ball |
| Max. Flow Rate @ 60ft of Head (gpm) | 11 |
| Port Connection Combined (inch) | 1 FNPT x 1 FNPT |
| Berat (Kg) | 15.3 |
| Tanggal Produk Terdaftar | 04 April 2024 |
| Terakhir Diperbaharui | 24 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
AC-powered flexible impeller utility pumps induce minimal sheer pressure on fluids and create minimal pulsation during operation for a smoother flow rate. They're suited for handling water, slurries, delicate liquids, viscous liquids, and liquids with suspended solids. These utility pumps connect to nearby outlets for indoor applications.
