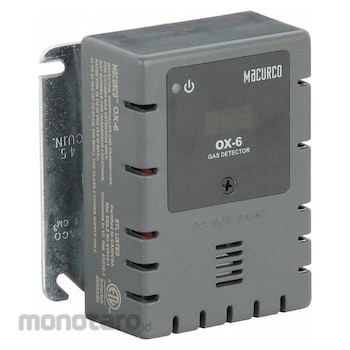

MACURCO Fixed Gas Detection OX6 DVP-120, Oxygen Detector O2 900 Sq.ft 1pc
Rp18.999.900
Persediaan
Spesifikasi Produk
| Model Number | OX6 |
|---|---|
| Unit | 1pc |
| UNSPSC | 46171613 |
| For use with | DVP-120 |
| Gas Detected | Oxygen |
| Standards | cETLus Certified |
| Voltage (V) | Low Voltage (12 to 24 AC 12 to 32 DC) |
| Includes | Manual |
| Product Type | Stand-Alone Detector & Controller |
| Mounting Location | Wall |
| Number of Relays | 2 |
| Measurement Range | Oxygen (0 to 25% Vol./ Vol.) |
| Sensor Type | Electrochemical |
| Visual Alert Type | Green LED |
| Display Type | Digital |
| Number of Gases Detected | 1 |
| Ties Into | Building Automation Panels; Fire Alarm Panels |
| Coverage Area (ft²) | 900 |
| Sensor Life (year) | 2 |
| Interchangeable Sensors | Yes |
| NEMA Enclosure Rating | Not Rated |
| IP Rating | Not Rated |
| Power Source | Hardwired |
| Mount Type | Bolts/Screws |
| Features | Selectable Fan and Alarm Relay Actuation Settings |
| Display Screen Type | LED |
| Alert Type | Internal Buzzer |
| Overall Depth (inch) | 4 |
| Overall Height (inch) | 4.5 |
| Overall Width (inch) | 2.12 |
| Maximum Operating Temperature (°F) | 122 |
| Status indicator | LED |
| Minimum Operating Temperature (°F) | -4 |
| Housing Color | Gray |
| Input Current (mA) | 23 @ 24V DC (Standby); 50 @ 24V DC (Fan Relay); 75 @ 24V DC (Alarm) |
| Output Type | SPDT Relay |
| Output Current (mA) | 4 to 20 |
| Resolution | 0.1% Vol. |
| Maximum Operating Humidity (%) | 90 |
| Minimum Operating Humidity (%) | 10 |
| Market | Commercial |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Number of Digits | 3 |
| Output Channels | 2 |
| Manufacturer Part Number | OX-6 |
| Series | Commercial Series |
| Detection Product Type | Gas Detector |
| Berat (Kg) | 0.4 |
| Tanggal Produk Terdaftar | 03 April 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Fixed gas detectors install in permanent locations to continuously monitor and alert personnel of specified gas concentrations in localized areas of a facility.
