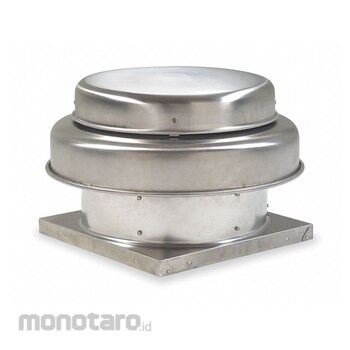

DAYTON Axial Downblast Supply Fans 4YC91 12 in Blade, Direct Drive Alu 29 L 18.3 H 28.6 W Roof W.Motor 1pc
Rp15.999.900
Persediaan
Spesifikasi Produk
| Model Number | 4YC91 |
|---|---|
| Unit | 1pc |
| UNSPSC | 40101501 |
| Number of Speeds | 1 |
| Phase | 1 |
| Number of Blades | 4 |
| Blade Diameter (inch) | 12 |
| Base Length (inch) | 22 |
| Base Width (inch) | 22 |
| Frequency (Hz) | 60 |
| High-Efficiency Motor | No |
| Motor Horsepower (HP) | 1/4 |
| Nameplate Voltage (VAC) | 115 |
| Current (A) | 4.2 |
| Maximum Inlet Air Temperature (°F) | 120 |
| Maximum Static Pressure (in wc) | 3/8 |
| Supply Airflow @ 0.000 in SP (cfm) | 929 |
| Supply Airflow @ 0.125 in SP (cfm) | 812 |
| Supply Airflow @ 0.250 in SP (cfm) | 594 |
| Supply Airflow @ 0.375 in SP (cfm) | 415 |
| Supply Airflow @ 0.500 in SP (cfm) | 261 |
| Includes Drive Package with Motor | Yes |
| Speed Controllable | Yes |
| Maximum Fan Speed (rpm) | 1750 |
| Housing Material Fabrication | Spun |
| Damper Size (inch) | 15x15 |
| Compatible Damper Grainger Part Number | 4HX65 |
| Manufacturer Part Number | 4YC91 |
| Brake Horsepower (hp) | 7/100 |
| Base shape | Square |
| Housing Length (inch) | 28.6 |
| Housing Width (inch) | 28.6 |
| Overall Diameter (inch) | 28.6 |
| Base Height (inch) | 1-3/4 |
| Blade Material | Aluminium |
| Housing Material | Aluminium |
| For Air Type | Clean Air |
| Overall Height (inch) | 18-1/4 |
| Overall Length (inch) | 28-5/8 |
| Overall Width (inch) | 28-5/8 |
| Mount Type | Roof Curb |
| Drive Type | Direct Drive |
| Motor Location | In Airstream |
| Motor Enclosure | Open Air Over |
| Mounting Location | Roof and Wall |
| Includes | NEMA 1 Junction Box |
| Standards | AMCA Sound and Air; UL/cUL 705 |
| Application | Industrial and Commercial Applications |
| Compatible Curb Manufacturer Part Number | 2RB76; 2ZV82; 4C453; 4C670; 4HX39; 4HX47 |
| Sound Level | 12.6 sones @ 0.375 in SP; 14.3 sones @ 0.250 in SP and 5 ft; 8.9 sones @ 0.125 in SP and 5 ft; 9.6 sones @ 0.000 in SP and 5 ft |
| Features | Fully Rolled Baffle Bead for Stability and Ease of Transport with Spun Aluminium Hood Construction, Galvanized Steel Venturi, Inlet and Supports, NEMA 1 Junction Box Located in Motor Enclosure |
| Berat (Kg) | 22.4 |
| Tanggal Produk Terdaftar | 01 April 2024 |
| Terakhir Diperbaharui | 07 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Clean air fans supply fresh air for the general ventilation of a structure. These fans use a propeller that's directly mounted on the motor shaft. This reduces friction and improves efficiency compared to a belt-drive fan. Direct-drive fans have fewer moving parts and typically require less maintenance than belt-drive fans.
