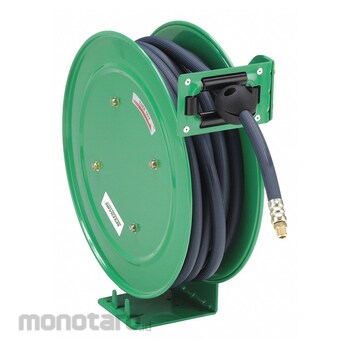

SPEEDAIRE Air or Water Spring-Return Hose Reels 49AE04 50 ft (3/8 in I.D.), 1/4 in MNPT Spring Return 1pc

Name: SPEEDAIRE Air or Water Spring-Return Hose Reels 49AE04 50 ft (3/8 in I.D.), 1/4 in MNPT Spring Return 1pc
Brand: SPEEDAIRE
SKU: S040534091
Price: 4999900 IDR
Availability: InStock

#Nomor SKU S040534091

SPEEDAIRE

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	49AE04
Unit	1pc
UNSPSC	40142121
Number of Mount Holes	6
Minimum Operating Temperature (°F)	21
Hose Length (ft)	50
Enclosed	No
Fasteners Included	No
For Dual Hose	No
Includes Leader Hose	No
Spiral Hose Guard	No
Hose End Configuration (in MNPT)	1/4
Maximum Operating Temperature (°F)	150
Maximum Operating Pressure	300
Hose Fitting A Type	NPT
Hose Fitting B Type	NPT
Swivel Inlet Type	NPT
Swivel Outlet Type	NPT
Hose Cover Material	PVC
Hose Tube Material	PVC
Corrosion-Resistant	Yes
Includes Hose	Yes
Includes Hose Stop	Yes
Includes	Hose
Hose Fitting A Gender	Male
Hose Fitting B Gender	Male
Swivel Outlet Gender	Male
Reel Color	Green
Hose Fitting A Material	Brass
Hose Fitting B Material	Brass
Swivel Material	Brass
Reel Material	Steel
Hose Fitting A Size (inch)	1/4
Hose Fitting B Size (inch)	1/4
Swivel Outlet Size (inch)	1/4
Hose Inside Dia. (inch)	3/8
Mount Hole Diameter (inch)	3/8
Swivel Inlet Size (inch)	3/8
Swivel Inlet Gender	Female
Fitting Size (inch)	1/4x1/4
Latch Type	Locking
Swivel Outlet Thread Size (in)	1/4 - 18
Swivel Inlet Thread Size (in)	3/8 - 18
Hose Outside Dia. (inch)	11/16
Mount Base Width (inch)	5-1/8
Hose Color	Dark Blue
Mounting Hole Center to Center Height (inch)	3-5/32
Fitting Type	NPT x NPT
Hose Reel Primary Application	Air; Water
Features	Heavy Duty
Overall Height (inch)	15-9/32
Mounting Hole Center to Center Width (inch)	3-13/16
Mount Base Height (inch)	4-21/64
Number of Guide Arms	Single Arm
Overall Width (inch)	6-13/16
Reel Width (inch)	6-13/16
Base Motion Type	Stationary
Reel Diameter (inch)	13-13/16
Overall Length (inch)	13-25/32
Fitting Gender	Male x Male
Drive Type	Spring Return
Pedestal Type	Single Pedestal
Hose Capacity (ft)	50
Hose Capacity (in I.D.)	3/8
Bearing Construction	Permanently Lubricated
Overall Dimensions LxWxH (in)	13-25/32x6-13/16x15-9/32
Hose Reel Type	Bench; Ceiling; Floor; Vehicle; Wall Mount Hose Reel
Berat (Kg)	12.5
Tanggal Produk Terdaftar	01 April 2024
Terakhir Diperbaharui	24 December 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Standard air or water spring-return hose reels are single-pedestal, low-pressure (up to 500 psi) hose reels that include standard low-pressure hose for air or water service only. These reels mount to the floor, wall, or ceiling, and include an adjustable guide arm. Standard air/water hose reels are used with air or water hoses for pneumatic tools, in service centers, and at construction sites.
