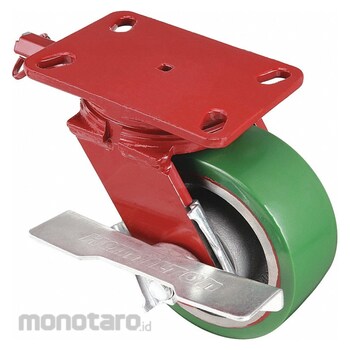

Hamilton Standard Plate Caster SFM6DB4SLFB 6inch Wheel Dia., 1600 lb Swivel. 1pc

Rp9.899.900
Persediaan

Spesifikasi Produk

Model Number SFM6DB4SLFB
Unit 1pc
UNSPSC 31162701
Caster Sub-Type Swivel
Swivel Construction Kingpin
Load Rating (lbs) 1600
Wheel Dia. (inch) 6
Wheel Width (inch) 2-1/2
Mounting Height (inch) 7-1/2
Wheel Tread Material Polyurethane
Wheel/Tread Hardness Rating Firm
Wheel/Tread Hardness 95 Shore A
Wheel/Tread Color Green
Wheel Bearing Type Precision Ball
Swivel Raceway Type Single Ball
Mounting Plate Bolt Hole Pattern A
Mounting Plate Size (inch) 4-1/2x6-1/2
Inside Bolt Hole Spacing (inch) 2-7/16x4-15/16
Outside Bolt Hole Spacing (inch) 3-3/8x5-1/4
Mounting Bolt Dia. (inch) 1/2
Number of Mounting Holes 4
Swivel Lock Type 4-Position Directional Lock
Caster Brake Type Swivel Lock with Side Pedal Brake
Frame Finish Enamel
Caster Frame Material Steel
Tread Shape Standard
Includes Thread Guards No
Wheel Core Material Cast Iron
Core Color Gray
Non-marking Yes
Number of Wheels 1
Replacement Wheel 35W177
Application Aerospace Tooling; All Purpose Industrial and Commercial Casters; Automotive Assembly Lines; Body Dolly Carts; Casters; Chassis Rack Carts; Engine Dollies; Material Carts
Features Floor Protective
Standards ICWM
Includes Spanner Bushing
Berat (Kg) 10.2
Tanggal Produk Terdaftar 29 March 2024
Terakhir Diperbaharui 27 May 2025
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
Extra-heavy-duty standard plate casters have forged steel frames, tapered roller thrust bearings, and forged or welded steel kingpins. They can bear heavier loads, tolerate more frequent use, and withstand more shock and impact from rolling over rough or uneven ground than light-duty, medium-duty, and heavy-duty standard plate casters. The casters are installed onto the bottom of dumpsters, trailer frames, die carts, and other heavy equipment used in industrial areas such as manufacturing plants, construction sites, and assembly plants. Swivel versions of these casters have hardened bearing raceways and large-diameter hardened ball swivel bearings, which are quieter and allow the caster to swivel more smoothly than roller bearings.
