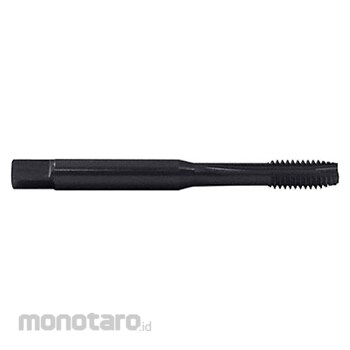

CLEVELAND General Purpose Spiral-Point Tap C86233 Plug, HSS-E 1inch - 12 1pc
Rp5.999.900
Persediaan
Spesifikasi Produk
| Model Number | C86233 |
|---|---|
| Unit | 1pc |
| UNSPSC | 23153305 |
| Manufacturer Part Number | C86233 |
| Thread Size | 1"-12 |
| Thread Standard | UNF |
| Tap Material | HSS-E |
| Tap Finish | Black Oxide |
| Thread Length (inch) | 2-1/2 |
| Overall Length (inch) | 6-9/32 |
| 75% Thread Drill Size (mm) | 23.3 |
| Class of Fit | 2B |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| Tap Length Standard | DIN |
| Tap Shank Standard | ANSI |
| Primary Material Application | Stainless Steel; Steel |
| 55% Thread Drill Size (inch) | 15/16 |
| 65% Thread Drill Size (mm) | 23.6 |
| Drill Bit Size (inch) | 59/64 |
| Extended Neck | Yes |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | M; P |
| Secondary Material Application | Cast Iron; Stainless Steel; Steel |
| Secondary Material Application ISO Code | K; M; P |
| Shank Diameter (inch) | 25/64 |
| Shank Length (inch) | 3-3/4 |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size (inch) | 0.6 |
| Standards | DIN/ANSI |
| Tap Chamfer | Plug |
| Tap Thread Size | 1"-12 |
| Thread Limit / Class of Fit | 2B |
| Thread per Inch | 12 |
| Berat (Kg) | 0.4 |
| Tanggal Produk Terdaftar | 28 March 2024 |
| Terakhir Diperbaharui | 07 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The black-oxide finish on these taps retains lubricants to improve the taps' wear resistance and chip flow. Black-oxide taps should only be used on ferrous metals. These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards. They also meet ANSI shank standards, which means they measure their shank diameter in inches and fit in standard tools used in the U.S.
