Small frame contactors with new functions join the SC series.
The SC line up, which is based on high level technology, now extends from the SC-03 to the SC-N16.
The SC series contactors have such options as additional auxiliary contact blocks and operation counter unit with snap-on fittings, and coil surge suppressors. Modification can be made quickly and easily on site.
Improved contact materials and structure double the electrical life compared with existing contactors 2 million operations.
Bifurcated type auxiliary contacts have a high degree of contact reliability.
Therefore, they can be used in low-level circuits of 5V, 3mA and directly input to electronic equipment.

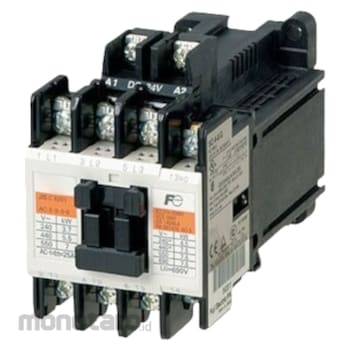

Fuji Electric DC Control Magnetic Contactor - SC Series SC-05/G DC24V 2b 1unit
Rp629.900
Persediaan
Spesifikasi Produk
| Model Number | SC-05/G DC24V 2b |
|---|---|
| Unit | 1unit |
| Thermal Current (A) | 20 |
| Compatible motor capacity (380-440V) (kW) | 5.5 |
| Rated Operational Current (A) | 12 |
| Auxiliary Contact | 2NC |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 04 December 2023 |
| Terakhir Diperbaharui | 17 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website.
Feature
- Electrical life: 2000000 operations (SC-N3 or smaller)- Bifurcated auxiliary contacts for greater reliability
- Compliance with international standards (UL, CSA, IEC, LR, BV, etc.)
- Easier to use (structured to enable easy coil replacement).
- High operating reliability due to a super magnet with built-in IC (SC-N6 or larger). (Prevents coil burning due to voltage fluctuations and contact fusing due to floppy operation; enables using the same coils for AC/DC, increases the range, reduces switching noise, etc.)
- Mirror contacts are a standard feature.
- A wide range of options
