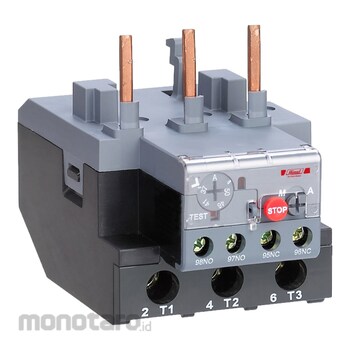

Himel Thermal Overload Relay HDR3S9365 HDR3s-93 48-65A 1pc
Rp309.900
Persediaan
Spesifikasi Produk
| Model Number | HDR3S9365 |
|---|---|
| Unit | 1pc |
| Poles Description | 3P |
| Protection Type | Overload, Phase failure |
| IP Degree of Protection | IP20 |
| Dimensions (HxWxD) (mm) | 83x72x119 |
| Operating Altitude (m) | 2000 |
| Pollution Degree | 3 |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 6 |
| [Ui] Rated Insulation Voltage (V) | 660 |
| Frame Size | 93A |
| Ambient Air Temperature for Operation (°C) | -5 to 40 |
| Utilisation Category | AC-15, DC-13 |
| Relative Humidity (%RH) | 0 to 95 |
| Local Signalling | Trip indicator |
| [Ith] Conventional Free Air Thermal Current (A) | 5 |
| Ambient Air Temperature for Storage (°C) | -25 to 55 |
| [Ie] Rated Operational Current (A) | 1.57 at 230 V AC-15, 0.9 at 400 V AC-15, 0.14 at 230 V DC-13 |
| Thermal Protection Adjustment Range (A) | 48 to 65 |
| Reset | Automatic Reset, Manual Reset |
| Control Type | Test button, Stop button |
| Berat (Kg) | 1.4 |
| Tanggal Produk Terdaftar | 24 November 2023 |
| Terakhir Diperbaharui | 27 May 2025 |
