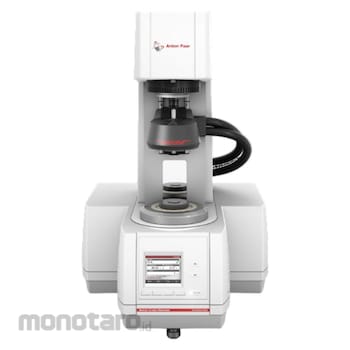

Anton Paar Rheometer DSR Smartpave 102E 444x678x586mm 1unit

The SmartPave is a Dynamic Shear Rheometer (DSR) combined with a unique Peltier heating system. The SmartPave incorporates new and innovative features that take asphalt testing to previously unattained levels of accuracy, comfort and ease of use. The SmartPave contains all required components according to the standard method. Testing and results are in full compliance with the following standards: AASHTO T315 (“PGGrading”), AASHTO T316, AASHTO TP101 (“LAS-Test”), AASHTO T350/ TP70 (“MSCR-Test”), ASTM D7175 (“PG-Grading”), ASTM D4402, ASTM D7405 (“MSCR-Test”), ASTM D7175 and European Standards DIN EN 13302, DIN EN 14770 and DIN EN 16659. Specifications: Minimum torque : 5 nNm Minimum torque (oscillation) : 2 nNm Maximum torque : 200 mNm Minimum angular velocity : 10-8 rad/s Maximum angular velocity : 314 rad/s Deflection angle : 0.5 to ∞ μrad Minimum angular frequencya : 10-7 rad/s Maximum angular frequency : 628 rad/s Torque resolution : 0.1 nNm Angular resolution : 0.01 μrad Normal force range : 0.01 - 50 N Normal force resolution : 1 mN TruStrain™ : Yes Toolmaster™ : Yes TruGap™b : Yes T-Ready : Yes Bearing type : air bearing Min. temperature : -50 °C Max. temperature : +220 °C Counter-cooling : Water Plate diameter : 4 to 75 mm Max. diameter meas. sys. : 75 mm
Harga Sudah Termasuk Training dan Installasi seluruh pulau Jawa
