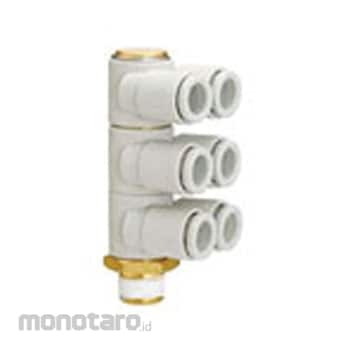

SMC Triple Branch Universal Elbow KQ2ZT without Sealant Metric Size KQ2ZT06-02A 1pc

Name: SMC Triple Branch Universal Elbow KQ2ZT without Sealant Metric Size KQ2ZT06-02A 1pc
Brand: SMC
SKU: S039125552
Price: 219900 IDR
Availability: InStock

#Nomor SKU S039125552

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	KQ2ZT06-02A
Unit	1pc
Color	Body: White, release bush: Light Gray
Material (screw)	Brass
Working Pressure Range (kPa-Mpa)	-100 - 1
Connector Thread	R1/4
Dimension A (mm)	52.2
Dimension d1 (Φmm)	10.4
Dimensions d2 (mm)	13.4 phi
Dimension L1 (mm)	18.4
Dimension L2 (mm)	20.7
Dimension L3 (mm)	56.9
Dimensions m (mm)	13.3
Effective Section Area (mm²)	(Nylon) 10.8 (Urethane) 8.6
Pipe Connection Diameter	1/4
Sealing Type	[Male screw] (-) No sealant
Shape	Triple Branch universal elbow
Suitable fluid	Air, water
Suitable Tube Outer Diameter (Φmm)	6
Thread Standard	Mounting part: JIS B0203 (tapered thread for pipes), JIS B0205 (metric coarse thread) Nut part: JIS B0205 (metric fine thread)
Type Of Thread	RRc
M Code	41388794
Berat (Kg)	0.2
Tanggal Produk Terdaftar	30 October 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details

- Dimension φD1 means the maximum diameter.
- Dimension A is the reference dimension after screwing R screw

Use

Used for 6 -branch piping in a right angle direction from the screw. The tube mounting direction is free and 3 independent.
