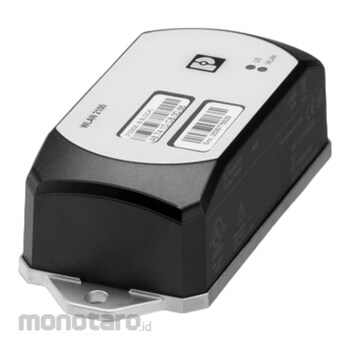

Phoenix Contact Wireless Module 2702540 FL WLAN 2101 1pc

Name: Phoenix Contact Wireless Module 2702540 FL WLAN 2101 1pc
Brand: Phoenix Contact
SKU: S038583452
Price: 11999900 IDR
Availability: InStock

#Nomor SKU S038583452

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	2702540
Unit	1pc
Product Type	Wireless module
Operating Ambient Temperature (°C)	-40 to 60
Mounting Type	Single-hole mounting
Storage/Transport Ambient Temperature (°C)	-40 to 85
Overvoltage Category	none
Housing Material	Polycarbonate, PC
Number of Positions	3
Conductor Cross Section Flexible (mm²)	0.2 to 1.5
Permissible Humidity (Storage/Transport) (%)	5 to 95 (non-condensing)
Stripping Length (mm)	10
Conductor Cross Section Rigid (mm²)	0.2 to 1.5
Permissible Humidity (Operation) (%)	5 to 95 (non-condensing)
Pollution Degree	2
Conductor Cross Section Awg	24 to 16
Connection Technology	COMBICON
Air Pressure (Operation) (kPa)	80 to 108 (up to 2000 m above sea level)
Air Pressure (Storage/Transport) (kPa)	66 to 108 (up to 3500 m above sea level)
Supply Voltage (V)	24 DC (SELV)
Transmission Speed (Mbps)	10/100
Transmission Length (m)	100 (per segment)
Berat (Kg)	0.3
Tanggal Produk Terdaftar	28 September 2023
Terakhir Diperbaharui	27 June 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

WLAN access point, client for USA and Canada, with two internal antennas for single-hole mounting, IP66/IP68, WLAN 802.11 a, b, g, n, frequency: 2.4 GHz, 5 GHz, connections: COMBICON 9 ... 32 V DC, RJ45: for LAN, web, http/https, CLI

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details
