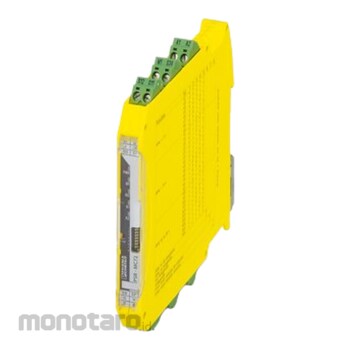

Phoenix Contact Safety Relays 2702096 PSR-MC72-2NO-1DO-24DC-SC 1pc

Name: Phoenix Contact Safety Relays 2702096 PSR-MC72-2NO-1DO-24DC-SC 1pc
Brand: Phoenix Contact
SKU: S038567292
Price: 7799900 IDR
Availability: InStock

#Nomor SKU S038567292

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	2702096
Unit	1pc
Product Type	Safety relays
Operating Ambient Temperature (°C)	-35 to 60 (observe derating)
Width (mm)	12.5
Mounting Type	DIN rail mounting
Height (mm)	112.2
Storage/Transport Ambient Temperature (°C)	-40 to 85
Housing Material	Polyamide
Depth (mm)	114.5
Degree of Protection	IP20
Product family	PSRmini
Contact Material	AgSnO2
Conductor Cross Section Flexible (mm²)	0.2 to 2.5
Contact Switching Type	2 enabling current paths
Stripping Length (mm)	7
Conductor Cross Section Rigid (mm²)	0.2 to 2.5
Maximum Power Dissipation for Nominal Condition (W)	5.78 (at US = 30 V, IL² = 72 A²)
Assembly Instructions	See derating curve
Mounting Position	Vertical or horizontal
Conductor Cross Section Awg	24 to 12
Shock	15g
Berat (Kg)	0.1
Tanggal Produk Terdaftar	28 September 2023
Terakhir Diperbaharui	27 June 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Safety relay for emergency stop, safety doors, light grid up to SIL 3, Cat. 4, PL e, 1- or 2-channel operation, cross-circuit detection, can be retriggered, fall back/tightening delay 0.2 s ... 60 s, 2 enabling current paths, US = 24 V DC, plug-in screw terminal block

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details
