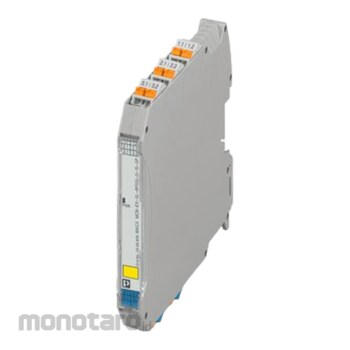

Phoenix Contact Repeater Power Supply MACX MCR-EX-SL-RPSSI-2I-1S-SP 1pc

Name: Phoenix Contact Repeater Power Supply MACX MCR-EX-SL-RPSSI-2I-1S-SP 1pc
Brand: Phoenix Contact
SKU: S038566349
Price: 8299900 IDR
Availability: InStock

#Nomor SKU S038566349

Phoenix Contact

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	MACX MCR-EX-SL-RPSSI-2I-1S-SP
Unit	1pc
Product Type	Repeater power supplies
Width (mm)	12.5
Mounting Type	DIN rail mounting
Flammability Rating According To Ul 94	V0 (Housing)
Height (mm)	107.9
Type	Ex i signal conditioners with SIL and PL Functional Safety
Storage/Transport Ambient Temperature (°C)	-40 to 80
Overvoltage Category	II
Housing Material	PA 6.6-FR
Depth (mm)	113.7
Degree of Protection	IP20 (not assessed by UL)
Product family	MACX Analog
Connection Method	Push-in connection
Conductor Cross Section Flexible (mm²)	0.2 to 2.5
Altitude (m)	≤ 2000 (The technical data refers to altitudes ≤2000 m above mean sea level. For altitudes >2000 m above mean sea level, refer to the data sheet.)
Stripping Length (mm)	10
Conductor Cross Section Rigid (mm²)	0.2 to 2.5
Permissible Humidity (Operation) (%)	10 to 95 (non-condensing)
Pollution Degree	2
Depth on NS 35/7,5 (mm)	114.5 (Snapped onto DIN rail NS 35/7,5 in accordance with EN 60715)
Berat (Kg)	0.2
Tanggal Produk Terdaftar	28 September 2023
Terakhir Diperbaharui	27 June 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Ex i measuring transducer repeater power supply and input signal conditioner, only output 1 is HART-transparent. Transmits supplied or active electrically isolated signals from the Ex area to two loads. SIL 2 in accordance with IEC 61508, Push-in connection.
