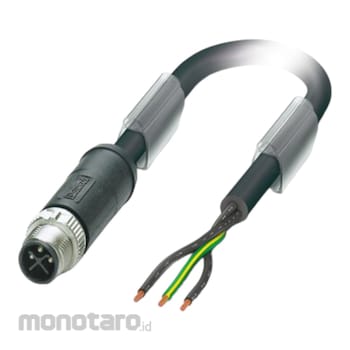

Phoenix Contact Power Cable (Kabel) SAC-3P-M12MSS/ 5,0-PUR PE Black 1pc
Rp809.900
Persediaan
Spesifikasi Produk
| Model Number | SAC-3P-M12MSS/ 5,0-PUR PE |
|---|---|
| Unit | 1pc |
| Product Type | Power cable |
| Flammability Rating According To Ul 94 | V0 |
| Overvoltage Category | III |
| Degree of Pollution | 3 |
| External Cable Diameter (mm) | 6.8 ±0.2mm |
| Application | Power supply |
| Insertion/Withdrawal Cycles | > 100 |
| Coding | S |
| Contact Material | CuZn |
| Cable Length (m) | 5 |
| External Sheath Color | Black |
| No. of Cable Outlets | 1 |
| Contact Surface Material | Ni/Au |
| Nominal Current IN (A) | 16 |
| Cable Type | PUR black [PUR] |
| Contact Carrier Material | PA |
| Conductor Material | Bare Cu litz wires |
| Wire Diameter Including Insulation (mm) | 2.25 ±0.05 |
| Outer Sheath Material | PUR |
| Cable Weight (kg/km) | 74 |
| Berat (Kg) | 0.3 |
| Tanggal Produk Terdaftar | 28 September 2023 |
| Terakhir Diperbaharui | 27 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Power cable, 3-position, Plug straight M12, coding: S, on free cable end, cable length: 5 m, For alternating current up to 16 A/250 V
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsDokumentasi Produk
