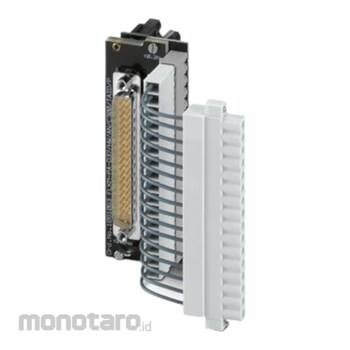

Phoenix Contact Front Adapters FLKM-PA-D37/HW/AN/C300/TAID/P 1pc
Rp5.999.900
Persediaan
Spesifikasi Produk
| Model Number | FLKM-PA-D37/HW/AN/C300/TAID/P |
|---|---|
| Unit | 1pc |
| Product Type | Front adapter |
| Operating Ambient Temperature (°C) | -20 to 70 |
| Width (mm) | 104.1 |
| Mounting Type | Plug-in mounting |
| Height (mm) | 44.4 |
| Storage/Transport Ambient Temperature (°C) | -20 to 70 |
| Overvoltage Category | II |
| Depth (mm) | 63.8 |
| Product family | VARIOFACE |
| Insertion/Withdrawal Cycles | > 500 |
| Rated Surge Voltage (kV) | 0.6 (1.2/50 μs) |
| Conductor Cross Section Flexible (mm²) | 0.2 to 2.5 |
| Altitude (m) | ≤ 2000 |
| Stripping Length (mm) | 10 |
| Conductor Cross Section Rigid (mm²) | 0.2 to 4 |
| Mounting Position | Any |
| Pollution Degree | 2 |
| Conductor Cross Section Awg | 24 to 12 |
| Rated Insulation Voltage (V) | 63 |
| Screw Thread | UNC 4-40 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 27 September 2023 |
| Terakhir Diperbaharui | 27 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
VARIOFACE front adapter, for Honeywell C300, Series C I/O, maximum of 1 x 16 channels can be connected (37-position D-SUB connector). Specially designed to connect analog I/O cards and transition them to passive operating mode.
