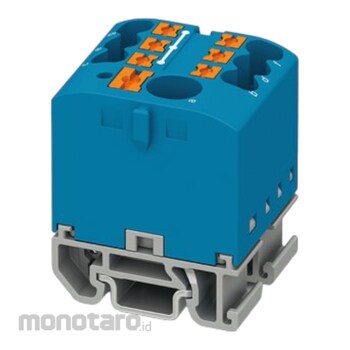

Phoenix Contact Terminal Block Power Distribution Type (Terminal Panel Listrik) PTFIX 6/6X2,5-NS15A BU Blue 1pack(10pcs)

Name: Phoenix Contact Terminal Block Power Distribution Type (Terminal Panel Listrik) PTFIX 6/6X2,5-NS15A BU Blue 1pack(10pcs)
Brand: Phoenix Contact
SKU: S038532337
Price: 1199900 IDR
Availability: InStock

#Nomor SKU S038532337

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	PTFIX 6/6X2,5-NS15A BU
Unit	1pack(10pcs)
Product Type	Distributor terminal block
Operating Ambient Temperature (°C)	-60 to 105 (max. short-term operating temperature RTI Elec.)
Width (mm)	25.6
Mounting Type	NS 15
Flammability Rating According To Ul 94	V0
Color	Blue
Height (mm)	28.6
Storage/Transport Ambient Temperature (°C)	-25 to 60 (for a short time, not exceeding 24 h, -60 to +70 )
Overvoltage Category	III
Degree of Pollution	3
Rated Surge Voltage (kV)	8
Ambient Temperature for Assembly (°C)	-5 to 70
Insulating Material	PA
Permissible Humidity (Storage/Transport) (%)	30 to 70
Maximum Power Dissipation for Nominal Condition (W)	0.77
Time of Exposure (s)	30
Test Duration per Axis (hour)	5
Shock Duration (ms)	18
Pulse Shape	Half-sine
Number of Shocks per Direction	3
Berat (Kg)	0.1
Tanggal Produk Terdaftar	27 September 2023
Terakhir Diperbaharui	02 February 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Distribution block, Block with horizontal alignment and integrated supply, nom. voltage: 690 V, nominal current: 41 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 6 mm2, cross section: 0.5 mm2 - 10 mm2, Push-in connection, Load contact, cross section: 0.14 mm2 - 4 mm2, mounting type: NS 15, color: blue
