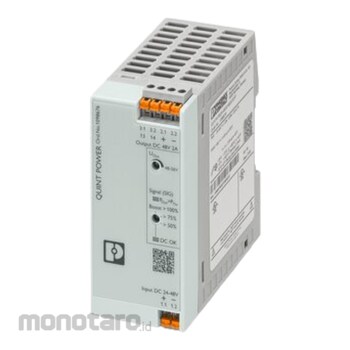

Phoenix Contact DC/DC Converters QUINT4-PS/24-48DC/48DC/2/PT 1pc
Rp7.299.900
Persediaan
Spesifikasi Produk
| Model Number | QUINT4-PS/24-48DC/48DC/2/PT |
|---|---|
| Unit | 1pc |
| Product Type | DC/DC converters |
| Operating Ambient Temperature (°C) | -25 to 70 (> 60 Derating: 2,5 %/K) |
| Mounting Type | DIN rail mounting |
| Storage/Transport Ambient Temperature (°C) | -40 to 85 |
| Degree of Pollution | 2 |
| Housing Material | Plastic |
| Degree of Protection | IP20 |
| Product family | QUINT POWER |
| Protection Class | II |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
| Max. Permissible Relative Humidity (Operation) (%) | ≤ 95 (at 25 °C, non-condensing) |
| Input Voltage Range (V) | 24 DC to 48 DC -10 % ... +25 % |
| Maximum Altitude (m) | ≤ 5000 (> 2000 m, observe derating) |
| Inrush Current (A) | typ. 8 |
| Number of Phases | 1 |
| Climatic class | 3K22 (in accordance with EN 60721-3-3) |
| Nominal Output Voltage (V) | 48 DC |
| Start-Up Type Tested Ambient Temperature (°C) | -40 |
| Nominal Output Current (IN) (A) | 2 |
| Feedback Voltage Resistance (V) | ≤ 65 DC |
| Berat (Kg) | 0.4 |
| Tanggal Produk Terdaftar | 27 September 2023 |
| Terakhir Diperbaharui | 27 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 24 V DC - 48 V DC, output: 48 V DC / 2 A
