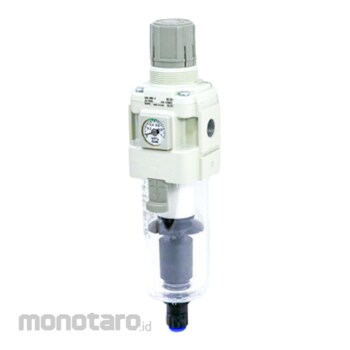

SMC Filter Regulator AW-B Series AW40-03BDE-B 1pc

#Nomor SKU S038236860

Spesifikasi Produk

Model Number	AW40-03BDE-B
Unit	1pc
Case Material	Polycarbonate
Assured Pressure Resistance (MPa)	1.5
Body Size	40
Connector Diameter	Rc3/8
Drain Port	With drain valve
Drain Storage (cm³)	45
Exhaust Type	Relief type
Function	No backflow function
Included Accessories	With bracket, float type auto drain (NO) with drain discharge when no pressurization, with square embedded pressure gauge (with limit indicator)
Maximum Operating Pressure (MPa)	1
Mounting	With bracket
Pipe Connection Diameter	(03) 3/8
Pressure Setting Range (MPa)	0.05 - 0.85
Setting Pressure (MPa)	(-) 0.05 - 0.85
Structure	Relief type
Suitable fluid	Air
Type of Sign	With bracket
Type of Terminal Fitting	(B) With bracket
Type Of Thread	(-) Rc
M Code	11841673
Berat (Kg)	0.8
Tanggal Produk Terdaftar	25 September 2023
Terakhir Diperbaharui	27 May 2025
