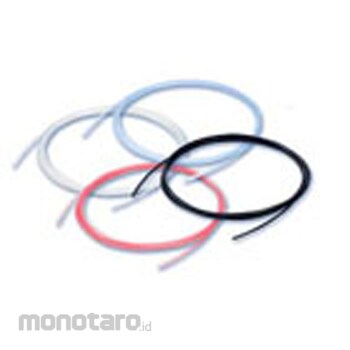

SMC FEP Tube Fluororesin TH TH1210B-20 1pc

Name: SMC FEP Tube Fluororesin TH TH1210B-20 1pc
Brand: SMC
SKU: S038227196
Price: 7299900 IDR
Availability: OutOfStock

#Nomor SKU S038227196

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	TH1210B-20
Unit	1pc
Color	Black (opaque)
Material	FEP (Ethylene Fluoride 6-Propene Fluoropolymerized Resin)
Length (m)	20
Outer Diameter x Inner Diameter (Φmm)	12×10
Outer Diameter (φmm)	12
Type	FEP tube (fluororesin) mm size TH Series
Heat Resistance Temperature (°C)	200
Maximum Operating Pressure (MPa)	(20°C)0.7, (100°C)0.25, (200°C)0.1
Minimum Bending Radius (mm)	130
Suitable Fittings	One-touch pipe fittings, insert pipe fittings, fluororesin pipe fittings LQ1, LQ2, LQ3, miniature pipe fittings M, MS series (hose nipple type)
Suitable fluid	Air water, inert gas
M Code	29422644
Berat (Kg)	2.1
Tanggal Produk Terdaftar	25 September 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details

Feature

- Maximum use pressure 2.3MPa or less (at 20 ° C) *
- Compatible with the Food Sanitation Law Compatible Examination.
- FDA (US Food and Pharmaceutical Bureau) §177-1550 Compatible with the elutment test.
- Maximum use temperature: 200 ° C (depending on the conditions)
* It depends on the size.
