SMC Compact Compressor CRP Series CRP10-S1-BP 1pc

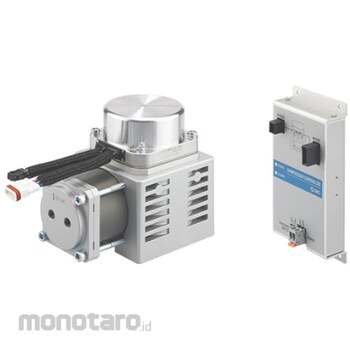

Name: SMC Compact Compressor CRP Series CRP10-S1-BP 1pc
Brand: SMC
SKU: S038096907
Price: 58999900 IDR
Availability: OutOfStock

#Nomor SKU S038096907

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	CRP10-S1-BP
Unit	1pc
Cable Length (m)	1
Check Valve	With one-touch fitting for residual pressure release circuit: None
Controller Mounting Method	Screw mounting
Digital Pressure Switch Type	High precision: ISE20A-Y-01-J-X603
Mass (kg)	Compressor: 3.1, Controller: 0.4
Maximum Discharge Pressure (MPa)	0.55
Noise Level (dB)	(with silencer, positive pressure) 55
Reaching Vacuum Pressure (kPa)	-70
ROHS Directive (Corresponding to 10 Substances)	Correspondence
Silencer	Suction port: ANB1-01
Valve	3-port solenoid for residual pressure release circuit: V124-5LU-M4 (* A connector with a lead wire length of 300 mm and a silencer (AN05-M5) for the exhaust port are included.)
M Code	26544080
Berat (Kg)	3.5
Tanggal Produk Terdaftar	22 September 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Compressed air is supplied in an environment without an air source! A single unit can be used as a positive pressure or vacuum pressure (vacuum pump) Compact, lightweight, oil-free, and silent

Warning

- Be sure to connect a high-precision digital pressure switch with PNP output to the controller.

Feature

Supply compressed air in an environment without air source!
Can be used as positive pressure or vacuum pressure (vacuum pump) with one unit
Small, lightweight, oil -free, silent sound

Use

Collaboration robots, transport robot cars, etc.
