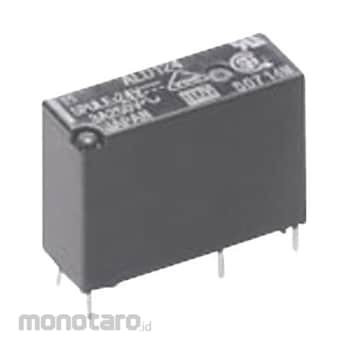

Panasonic Power Relays ALDP112 General Purpose, LD-P(ALDP) Series, Non Latching, SPST-NO 12VDC, 5A 1pc
Rp31.900
Persediaan
Spesifikasi Produk
| Model Number | ALDP112 |
|---|---|
| Unit | 1pc |
| Product Range | LD-P(ALDP) |
| Contact Configuration | SPST-NO |
| Relay Mounting | Through Hole |
| Relay Terminals | Solder |
| Contact Material | Silver Nickel |
| Coil Voltage (V) | 12 |
| Contact Current (A) | 5 |
| Coil Type | Non Latching |
| Contact Voltage VDC (V) | 30 |
| Contact Voltage VAC (V) | 277 |
| Coil Resistance (ohm) | 720 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 17 July 2023 |
| Terakhir Diperbaharui | 08 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The ALDP112 is a 1-pole slim type Power Relay, LD-P series. 1 form-A contact configuration. AgNi contact. Creepage distance and clearances between contact and coil minimum 6mm (in compliance with IEC65). Surge withstand voltage between contact and coil 10000V or more.
Feature
Excellent heat resistance and tracking performanceHigh insulation resistance
-40 to 85°C Operating temperature range
Use
Industrial, Consumer Electronics,
HVAC
