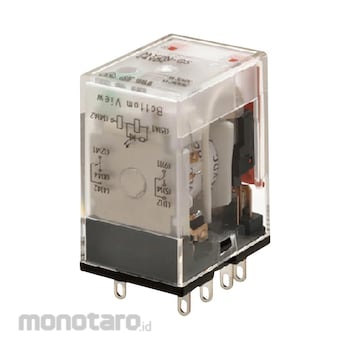

OMRON INDUSTRIAL AUTOMATION Power Relays MY2N-GS DC24 DPDT, MY-GS Series, Socket, Non Latching 24VDC, 5A 1pc
Rp179.900
Persediaan
Spesifikasi Produk
| Model Number | MY2N-GS DC24 |
|---|---|
| Unit | 1pc |
| Product Range | MY-GS Series |
| Contact Configuration | DPDT |
| Relay Mounting | Socket |
| Relay Terminals | Plug In |
| Contact Material | Silver |
| Coil Voltage (V) | 24 |
| Contact Current (A) | 5 |
| Coil Type | Non Latching |
| Contact Voltage VDC (V) | 24 |
| Contact Voltage VAC (V) | 220 |
| Coil Resistance (ohm) | 636 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 17 July 2023 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
MY-GS series general-purpose miniature power relay has a lineup of models with latching levers added for easier circuit checking. It reduces wiring work by 60% when combined with the PYF-PU Push-In Plus Socket (according to actual OMRON measurements). These relays with AC and DC coils have different colours of operating indicators (LEDs). Printing on the coil tape indicates the operating coil specification. It has wide ambient operating temperature-reliable application is possible for high density mounting and in cold locations.
Feature
High electrical durability helps reduce the maintenance frequencyWithout latching lever, number of poles are 2, standard approvals are UL, CSA, CQC
LED operation indicator and built-in mechanical indicators, number of pins are 8
Standard coil surge absorption
Voltage rating of 24VDC, rated current of 36.3 (37.7)mA (50Hz)
Single contact structure
Contact configuration and structure is DPDT single, material is silver (Ag)
Operating ambient temperature range from -40 to 70°C, malfunction shock resistance is 20G
Minimum load is 1mA at 5VDC
Maximum switching capacity is 1750VA/210W (resistive load), 440VA/48W (inductive load)
