All-new patented design offers faster tubing changes and improved ergonomics.
Tubing occlusion is automatic and optimized when pump head is closed and latched - load tubing in 15 seconds or less
Flow rates up to 3400 ml/min-flow rate depends on drive rpm, pump head, and tubing size
Pressure up to 150 psi (10.3 bar) with L/S high-pressure (HP) pump tubing
Reinforced nylon housing and occlusion bed with stainless steel rotor/roller assembly
Compatible with all 1/10 hp L/S drives that accept two or more pump heads
Compact design for efficient use of space
ATEX rating Ex II 3 G Ex h IIC T6 Gc
The L/S High-Performance pump heads offer better suction lift, viscous fluid transfer, and longer tubing life. Tubing enters and exits the same side of the pump head for easy connection to tubing inlet and outlet. Heads are not compatible with the 07554-series L/S Economy Console drives.
US Patent No. 10,578,096.
Delivery information: Includes mounting hardware.

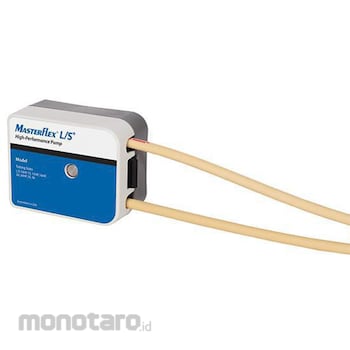

Master Flex Pump Heads 77252-80 for Precision Tubing, ATEX-approved 1pack(12pcs)
Rp61.999.900
Persediaan
Spesifikasi Produk
| Model Number | 77252-80 |
|---|---|
| Unit | 1pack(12pcs) |
| Maximum Flow Rate (ml/minute) | 2812 |
| Width (mm) | 146 |
| Suction Lift (ft) | 29 |
| Volume Per Revolution with L/S 16 Tubing (ml) | 0.9 |
| Volume Per Revolution with L/S 25 Tubing (ml) | 1.9 |
| Volume Per Revolution with L/S 17 Tubing (ml) | 3 |
| Volume Per Revolution with L/S 18 Tubing (ml) | 3.8 |
| Length (mm) | 69 |
| Housing Material | Glass-filled nylon PA |
| Tubing Sizes Accepted | L/S 16, L/S 25, L/S 17, L/S 18 |
| No. of Channels | 1 |
| Open-Head Sensor | No |
| Pump Series | L/S |
| Rotor Material | Stainless Steel |
| Rollers | 3 |
| Gear Ratio | 1:1 |
| Occlusion | Fixed |
| Height (mm) | 101 |
| Tubing Retention | Manual |
| Optimum RPM Range (rpm) | 0.02 to 600 |
| Berat (Kg) | 0.9 |
| Tanggal Produk Terdaftar | 27 June 2023 |
| Terakhir Diperbaharui | 22 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Tubing occlusion is automatic and optimized when pump head is closed and latched - load tubing in 15 seconds or lessFlow rates up to 3400 ml/min-flow rate depends on drive rpm, pump head, and tubing size
Pressure up to 150 psi (10.3 bar) with L/S high-pressure (HP) pump tubing
Reinforced nylon housing and occlusion bed with stainless steel rotor/roller assembly
Compatible with all 1/10 hp L/S drives that accept two or more pump heads
Compact design for efficient use of space
ATEX rating Ex II 3 G Ex h IIC T6 Gc
