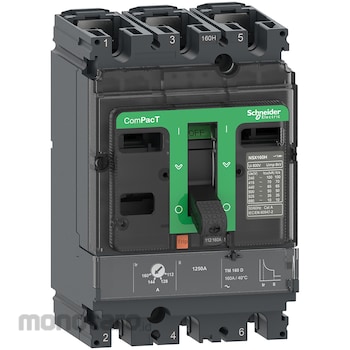

Schneider Electric Circuit breaker ComPacT NSX New Generation C10F3TM100 100A - 100AF / 100AT 1pc

Name: Schneider Electric Circuit breaker ComPacT NSX New Generation C10F3TM100 100A - 100AF / 100AT 1pc
Brand: Schneider Electric
SKU: S036548590
Price: 2099900 IDR
Availability: InStock

#Nomor SKU S036548590

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	C10F3TM100
Unit	1pc
Height (mm)	161
Width (mm)	105
Depth (mm)	86
Referensi	TMD100D
Distance Power Lines (A)	70.0-100
Rated Current (A)	100 (at 40 °C)
Berat (Kg)	2.0
Tanggal Produk Terdaftar	09 June 2023
Terakhir Diperbaharui	17 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

This ComPacT NSX100F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 100A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100F is part of Schneider Electric EcoStruxure Power architecture.

Fitur

Dirancang dengan teknologi pemutus Roto-active, memberikan kehandalan dalam Current Limiting Capacity;
- Arus nominal (In): 100-250A
- Kapasitas pemutusan: 36 sampai dengan 70kA pada 380/415 VAC
- Ics= 100% Icu
- Trip unit:
TMD = Thermal (0,7-1 x In)

Use

Applications An excellent choice for all standard and specific applications, including: Standard applications: industries, buildings, infrastructures Specific applications demanding high performance: marine, oil and gas extraction and processing, mining operations, metals and minerals production, and data centers Source-changeover systems (TransferPact): service sector (hospital operating rooms, computer rooms, ), industry (assembly lines, ship engine rooms, etc.), infrastructures (runway, railway, etc.) Ensures compliance with international standards (Find on ComPact NSX certificate downloads): IEC/EN 60947-1 and 2, IEC 60068-2-30 for type 2 tropicalisation, CCC, EAC and other local certifications Compliance with specifications of marine classification companies: Bureau Veritas, Lloyd’s Register of Shipping, DetNorske Veritas and RINA
