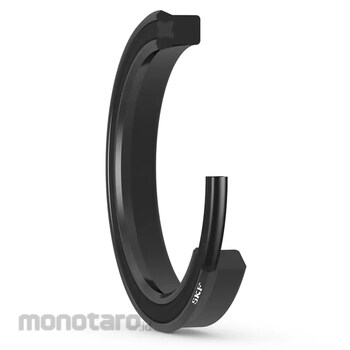

SKF Seal Hidrolik Rod Simetris dengan Energizer Dalam Ukuran Inci PTB250-4000-562-J1S 1pc
Rp359.900
Persediaan
Spesifikasi Produk
| Model Number | PTB250-4000-562-J1S |
|---|---|
| Unit | 1pc |
| Rod Diameter (inch) | 4 |
| Housing Groove Diameter (inch) | 4.5 |
| Housing Groove Width (inch) | 0.618 |
| Compound 2 | Nitrile Rubber (NBR A-8501) |
| Design | PTB |
| Primary Sealing Element | Polyurethane (TPU U-1003) |
| Rod Diameter d (inch) | 4 |
| Housing Groove Diameter D (inch) | 4.5 |
| Housing Groove Width L (inch) | 0.618 |
| Radial Depth S (inch) | 0.25 |
| Groove Radius R (inch) | Max. 0.02 |
| Lead-in Chamfer Length On Rod C (inch) | Min. 0.312 |
| Extrusion Gap At 2320.6 psi (inch) | 0.018 |
| Extrusion Gap At 3625.94 psi (inch) | 0.01 |
| Extrusion Gap At 5801.51 psi (inch) | 0.004 |
| Pressure (psi) | Max. 5 801.51 |
| Speed (ft/s) | Max. 3.281 |
| Additional Element | Nitrile Rubber (NBR A-8501) |
| Berat (Kg) | 2.4 |
| Tanggal Produk Terdaftar | 27 April 2023 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These hydraulic rod seals consist of a LUBRITHANE thermoplastic polyurethane seal, with a bevel-style lip design, and an integrated nitrile rubber X-ring energizer that provides additional sealing force and improves long-term sealing performance.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Suitable for seal housings according to ISO 5597- Provide good performance even at low operating pressures and temperatures
- Accommodate pressures up to 400 bar (5 800 psi)
- Suitable for medium duty applications
