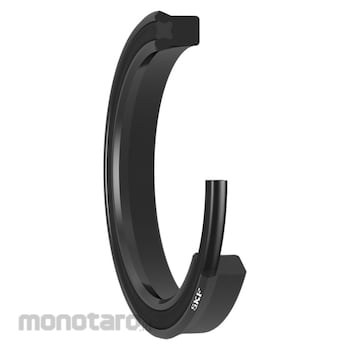

SKF Seal Hidrolik Rod Simetris dengan Energizer PTB-90X105X9.9-J1S 1pc
Rp169.900
Persediaan
Spesifikasi Produk
| Model Number | PTB-90X105X9.9-J1S |
|---|---|
| Unit | 1pc |
| Rod Diameter D (mm) | 90 |
| Housing Groove Diameter D (mm) | 105 |
| Housing Groove Width L (mm) | 9.9 |
| Maximum Pressure Limit (N/mm²) | 40 |
| Extrusion Gap at 160bar (mm) | 0.5 |
| Extrusion Gap at 250bar (mm) | 0.3 |
| Extrusion Gap at 400bar (mm) | 0.15 |
| Design | PTB |
| Speed (m/s) | Max. 1 |
| Lead-in Chamfer Length C (mm) | min. 8.5 |
| Upper Limit Deviation tol-d (mm) | -0.036 |
| Lower Limit Deviation tol-d (mm) | -0.09 |
| Tolerance Class for Rod Diameter | f8 |
| Alternative Tolerance Class for Rod Diameter | h9 |
| Upper Limit Deviation tol D (mm) | 0.14 |
| Lower Limit Deviation tol D (mm) | 0 (zero) |
| Tolerance Class for Housing Groove Diameter | H10 |
| Upper Limit Deviation tol L (mm) | 0.2 |
| Lower Limit Deviation tol L (mm) | 0 (zero) |
| Reference Temperature for Extrusion Gap (°C) | 60 |
| Pressure (bar) | max. 400 |
| Extreme Upper Temperature Limit (°C) | 120 |
| Reduced Performance Temperature Upper Limit (°C) | 110 |
| Upper Operating Temperature Limit (°C) | 100 |
| Lowest Operating Temperature Limit (°C) | -25 |
| Reduced Performance Temperature Lower Limit (°C) | -30 |
| Extreme Lower Temperature Limit (°C) | -50 |
| Additional Element | Nitrile Rubber (NBR A-8501) |
| Primary Sealing Element | Polyurethane (TPU U-1003) |
| Compound 2 | Nitrile Rubber (NBR A-8501) |
| Radial Depth S (mm) | 7.5 |
| Groove Radius R (mm) | max. 0.5 |
| Berat (Kg) | 2.4 |
| Tanggal Produk Terdaftar | 27 April 2023 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These hydraulic rod seals consist of a LUBRITHANE thermoplastic polyurethane seal, with a bevel-style lip design, and an integrated nitrile rubber X-ring energizer that provides additional sealing force and improves long-term sealing performance.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Suitable for seal housings according to ISO 5597- Provide good performance even at low operating pressures and temperatures
- Accommodate pressures up to 400 bar (5 800 psi)
- Suitable for medium duty applications
