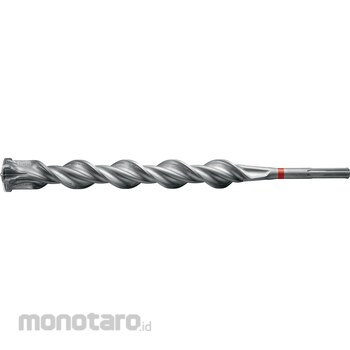

HILTI Hammer Drill Bit (Mata Bor Beton) TE-YX 14/32 SDS Max 1pc

Name: HILTI Hammer Drill Bit (Mata Bor Beton) TE-YX 14/32 SDS Max 1pc
Brand: HILTI
SKU: S035666813
Price: 4899900 IDR
Availability: InStock

#Nomor SKU S035666813

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	TE-YX 14/32
Unit	1pc
Connection End	TE-Y (SDS-max)
Diameter (mm)	14
Base Material	Reinforced concrete, Concrete, Masonry, Brick, Sand-lime block
Working Mode	Hammer drilling
Length (mm)	320
Head Shape	Multi cutter
Head Material Composition	Tungsten carbide
Working Length (mm)	200
Product Class	Ultimate
Berat (Kg)	0.4
Tanggal Produk Terdaftar	30 March 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Ultimate SDS Max (TE-Y) hammer drill bit for exceptional drilling performance in reinforced concrete (metric)

Feature

Optimised multi-cutter (4 or 6-cutter) carbide head – superior drilling performance and less jamming when hitting rebar
Heat-treated flute offers superior wear resistance and maximum robustness, with a wear mark to estimate the bit's suitability for setting anchors
Slimmer and lighter helix for more comfortable drilling and superior drilling speed
Fully embedded drill bit head for maximum durability and longer life
In the unlikely event of breakage, the drill bit will be considered for replacement as long as the wear mark on the helix is still visible
Package content
1x Hammer drill bit TE-YX(3) 14/32

Use

Applications
Hammer drilling in reinforced concrete, concrete, masonry and other construction materials
Drilling holes for all chemical anchor installation purposes
Drilling anchor holes for all mechanical anchor installation purposes
Installing rebar using Hilti injectable adhesive mortar
Extra-long drill bits available for renovation work, e.g. sealing joints in masonry and concrete to prevent water penetration
