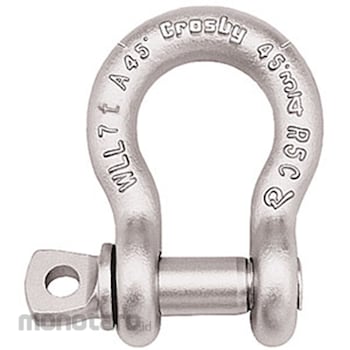

Crosby Shackle Omega G209A 7/8inch 1pc

Name: Crosby Shackle Omega G209A 7/8inch 1pc
Brand: Crosby
SKU: S035597032
Price: 1299900 IDR
Availability: InStock

#Nomor SKU S035597032

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	G209A
Unit	1pc
Nominal size (inch)	7/8
Working Load Limit (t)	9.5
Tolerance A ±	0.06
Tolerance C ±	0.25
Dimension A (inch)	1.44
Dimensions b (inch)	1
Dimension C (inch)	3.31
Dimension D (inch)	0.88
Dimension E (inch)	2.28
Dimension F (inch)	2.09
Dimension G (inch)	4.03
Dimension H (inch)	5.83
Dimension L (inch)	0.5
Dimension M (inch)	4.5
Dimension P (inch)	0.97
Stock No.	1017560
Berat (Kg)	1.6
Tanggal Produk Terdaftar	24 March 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

• Forged alloy steel, Quenched & Tempered, with alloy pins.
• Meets performance requirements of Grade 8 shackles.
• Working Load Limit permanently shown on every shackle.
• Hot-dip galvanized.
• Size 3/8 inch is mechanically galvanized.
• Approved for use at -40° C (-40° F) to 204° C (400° F).
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.
• G-209A Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade B, Class 2, except for those provisions required of the contractor.

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details
