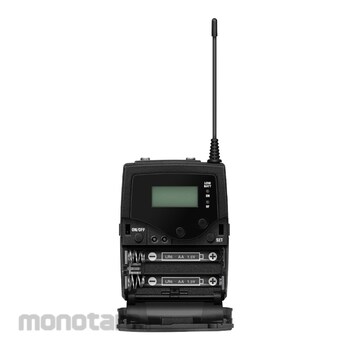

Powerful black camera receiver with increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions, easily mounted on any kind of camera.
-Professional sound and excellent construction quality
-Easy to use and fast setup time
-Easy and flexible wireless synchronisation between transmitter and receiver via infrared
-Up to 88 MHz bandwidth, up to 32 channels
-Range: up to 100 meters / 330 feet
-Increased RF output power (10/30/50 mW)
-Up to 8 hours of operation time
Frequency range = AS: 520 - 558 MHz
Aw+: 470 - 558 MHz
Bw: 626 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
GBw: 606 - 678 MHz
Gw: 558 - 626 MHz
Gw1: 558 - 608 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
Receiving frequency = Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
What's in the Box :
EK 500 G4 camera receiver
2 AA batteries
CA 2 camera adapter
CL 1 3.5 mm jack cable
CL 500 XLR to 3.5 mm jack adapter cable
quick guide
safety guide
manufacturer declaration sheet
Sennheiser Portable Camera Receiver EK 500 G4-Gw 1pc
Rp8.199.900
Persediaan
Spesifikasi Produk
| Model Number | EK 500 G4-Gw |
|---|---|
| Unit | 1pc |
| Dimensions (mm) | Approx. 82x64x24 |
| Compander | Sennheiser HDX |
| THD, Total Harmonic Distortion (%) | ≤ 0.9 |
| Audio Output (mm) | 3.5 Jack Socket: +17 dBu (mono, balanced) |
| Signal to Noise Ratio (dBA) | (Line: ≥ 110), (Phones: Approx. 90) |
| Switching Bandwidth (MHz) | up to 88 |
| Peak Deviation (kHz) | ±48 |
| Nominal Deviation (kHz) | ±24 |
| Operating Time (hour) | Typically 8 |
| Modulation | Wideband FM |
| Current Consumption | at Nominal Voltage: typ. 140 mA with Receiver Switched off: ≤ 25 µA |
| Adjacent Channel Rejection (dB) | Typically ≥ 65 |
| Intermodulation Attenuation (dB) | Typically ≥ 65 |
| Powering (V) | 3 Battery (2.4 V Rechargeable Battery) |
| RF Sensitivity (μV) | < 1.6 (for 52 dBA eff S/N) |
| Squelch (dBµV) | (Low: 5), (Middle: 15), (High: 25) |
| Temperature Range (°C) | -10 to +55 |
| Receiver Principle | Adaptive Diversity |
| Blocking (dB) | ≥ 70 |
| Power Supply | 2 AA Batteries, 1.5 V or BA 2015 Accupack |
| Berat (Kg) | 0.4 |
| Tanggal Produk Terdaftar | 23 February 2023 |
| Terakhir Diperbaharui | 08 August 2025 |
