PUMP ROTOR QXN SUBMERSIBLE PUMP
Hydraulic part under the motor and motor cooled by the pumped water for safe operation also with the pump
only partially immersed.
Double shaft seal with interposed oil chamber.

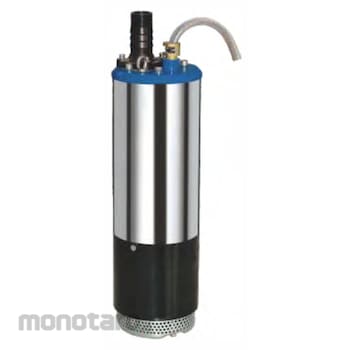

ROTOR Pump Submersible 3 Phase (Pompa Celup) QXN20/3-11 with Body SS304 and Impeller Cast Iron 1unit
Rp36.999.900
Persediaan
Spesifikasi Produk
| Model Number | QXN20/3-11 |
|---|---|
| Unit | 1unit |
| Power (HP) | 25 |
| Outlet (mm) | 65 |
| Maximum Head (m) | 90 |
| Body Material | Stainless Steel SS304 |
| Impeller Material | Cast Iron |
| Inlet (inch) | 2.5 |
| Rated Capacity (m³/hour) | 20 |
| Rated Current (380V) (A) | 22 |
| Rated Head (m) | 90 |
| Maximum Capacity (m³/hour) | 50 |
| Impeller Passage (mm) | 6 |
| Diameter (mm) | 274 |
| Dimension H1 (mm) | 895 |
| Dimension H (mm) | 1010 |
| Packing Dimension (mm) | 1095x305x385 |
| Water Temperature (°C) | Up to 40 |
| pH Range | 6.5-8.5 |
| Power Supply | three phase, 380V±10%, 50Hz 380V±10%, 60Hz |
| Power (kW) | 2.2-25 |
| Berat (Kg) | 189.0 |
| Tanggal Produk Terdaftar | 16 February 2023 |
| Terakhir Diperbaharui | 16 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Use
- For mining, building, factory and industrial applications.- For water supply from wells, tanks or reservoirs.
- For garden use and agricultural irrigation.
