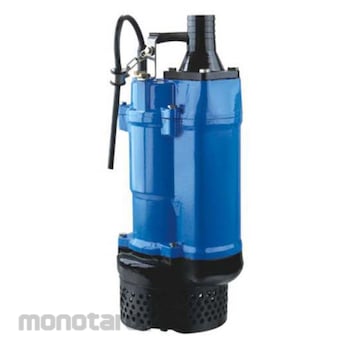

ROTOR Pump Submersible Dewatering 3 Phase (Pompa Celup) KTZ21.5 1.5kW 2HP 1unit

Name: ROTOR Pump Submersible Dewatering 3 Phase (Pompa Celup) KTZ21.5 1.5kW 2HP 1unit
Brand: ROTOR
SKU: S035317432
Price: 7299900 IDR
Availability: InStock

#Nomor SKU S035317432

ROTOR

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	KTZ21.5
Unit	1unit
Power (HP)	2
Outlet (mm)	50
Power (kW)	1.5
Maximum Head (m)	22
Impeller Passage (mm)	8.5
Maximum Capacity (m³/hour)	27
Maximum Capacity (m³/minute)	0.45
Packing Dimension (mm)	590x290x250
Dimension A (mm)	235
Dimension A1 (mm)	173
Dimension B (mm)	517
Dimensions d (mm)	216
Dimension H (mm)	486
Dimension W1 (mm)	120
Power Supply	Three Phase 380 V ± 10%, 50Hz
Insulation class	F
Protection Class	IP68
Cable Length (m)	8
Water Temperature (°C)	Up to 40
Max. Water Depth (m)	50
Berat (Kg)	37.5
Tanggal Produk Terdaftar	16 February 2023
Terakhir Diperbaharui	16 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

PUMP "ROTOR"
SUBMERSIBLE DEWATERING PUMP 380V 3PHASE
with high chrome alloy impeller & extra inner thread flange.

The body of motor and pump is made of rigid cast iron for long-lasting durability.
Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure (0.5Mpa)
Semi-open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.
Effective motor cooling due to discharge channel cast as part of the motor housing. Space economy by a top outlet.
Discharge 50mm (2") to 150mm (6"), motor 1.5Kw (2HP) to 11Kw (15HP).
Hermetically sealed motor equipped build-in thermal protection.

Use

- Civil Engineering
- Mines, quarries, coal ore & slurries
- Sewage treatment plants
- General pumping purposes
