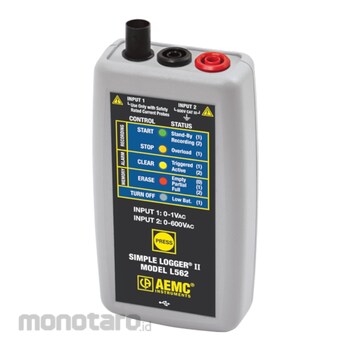

AEMC Simple Logger II L562 1unit

#Nomor SKU S035252863

Spesifikasi Produk

Model Number	L562
Unit	1unit
Operating Temperature (°C)	-10 to 50
Dimensions (inch)	4.94 x 2.75 x 1.28
Storage Temperature (°C)	-20 to 60
Channels	Two
Connection	Current Channel
Ranges (V)	0 to 1 for use with current probe with mV output
Accuracy (50/60Hz)	10 to 50: ±(0.5% R +1mV); 50 to 1000mV ±(0.5% R +0.5mV)
Input	BNC
Sample Rate	64 samples / cycle
Storage Rate	Programmable from 125ms to 1 per day
Storage Modes	Start/Stop, FIFO, extended mode (XRM) and Alarm
Recording Length	15 minutes to 6 weeks, programmable using DataView
Memory	240,000 measurements (512KB). Recorded data is stored in non-volatile memory and will be retained even if battery is low or removed.
Communication	USB 2.0 optically isolated
Battery Life	100 hours to >45 days (depending on sample rate/recording length)
Case	Polycarbonate
Power Source	2x1.5V AA (LR6) alkaline batteries
Input Impedance (ohm)	800000
Resolution (mV)	0.1 AC
Maximum Input Voltage (V)	5rms or ±7.07 Peak
Berat (Kg)	0.6
Tanggal Produk Terdaftar	03 February 2023
Terakhir Diperbaharui	27 May 2025
