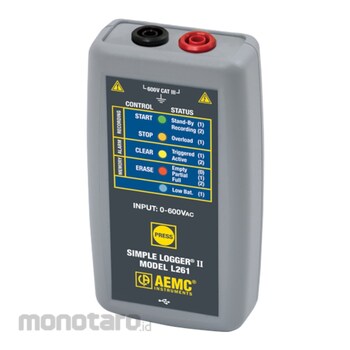

AEMC Simple Logger II L261 1unit

#Nomor SKU S035252849

Spesifikasi Produk

Model Number	L261
Unit	1unit
Operating Temperature (°C)	-10 to 50
Dimensions (inch)	4.94 x 2.75 x 1.28
Storage Temperature (°C)	-20 to 60
Ranges (V)	5 to 600 AC/AC+DC
Channels	One
Input	4mm safety banana jacks
Sample Rate	64 samples / cycle
Storage Rate	Programmable from 125ms to 1 per day
Storage Modes	Start/Stop, FIFO, extended mode (XRM) and Alarm
Recording Length	15 minutes to 6 weeks, programmable using DataView
Memory	240,000 measurements (512KB). Recorded data is stored in non-volatile memory and will be retained even if battery is low or removed.
Communication	USB 2.0 optically isolated
Battery Life	100 hours to >45 days (depending of sample rate/recording length)
Case	Polycarbonate
Relative Humidity (%RH)	Up to 85 @ 95℉ (35℃)
Power Source	2x1.5V AA (LR6) alkaline batteries
Accuracy 50/60Hz (%)	5 to 50V ±(0.5% Rdg +1V); 50 to 600V (0.5% Rdg +0.5V)
Input Impedance (ohm)	40000000
Resolution (mV)	100 AC/AC+DC
Maximum Input Voltage (V)	1.2 x 600rms or 720rms
Berat (Kg)	0.6
Tanggal Produk Terdaftar	03 February 2023
Terakhir Diperbaharui	27 May 2025
