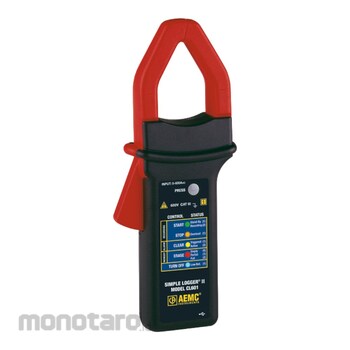

AEMC Simple Logger II CL601 1unit

#Nomor SKU S035252740

Spesifikasi Produk

Model Number	CL601
Unit	1unit
Operating Temperature (°C)	-10 to 50
Dimensions (inch)	9.25 x 4.0 x 1.63
Storage Temperature (°C)	-20 to 60
Resolution (A)	0.1
Maximum Input Current (A)	600 < 1 min.
Accuracy (50/60Hz)	5 to 50A: ±(1% Rdg +1A); 50 to 400A: (1% Rdg +0.5A); 400 to 600A: (3% Rdg +1A)
Jaw Opening (inch)	1 conductor – Ø 1.46 (36mm: or 2 Ø 1
Input Level (A)	5 to 600 AC
Channels	One
Input	Split CT – AC Current
Sample Rate	64 samples / cycle
Storage Rate	Programmable from 125ms to 1 per day
Storage Modes	Start/Stop, FIFO, extended mode (XRM) and Alarm
Recording Length	15 minutes to 6 weeks, programmable using Dataview
Memory	240,000 measurements (512KB). Recorded data is stored in non-volatile memory and will be retained even if battery is low or removed.
Communication	USB 2.0 optically isolated
Battery Life	100 hours to >45 days (depending of sample rate/recording length)
Case	Polycarbonate
Relative Humidity (%RH)	Up to 85 @ 95℉ (35℃)
Power Source	2x1.5V AA (LR6) alkaline batteries
Berat (Kg)	0.8
Tanggal Produk Terdaftar	03 February 2023
Terakhir Diperbaharui	27 May 2025
