Other Features :
Power supply voltage display
Wide/narrow channel setting
4.5 W (typical) loud audio
Reduced depth dimensions
DTMF autodial
Time-out timer
Repeater lockout
Automatic power off
S-meter squelch
Selectable LCD backlight color (amber, yellow and green)
Weather channel receive and alert function (USA version only)
Automatic repeater function (USA version only)
Selectable squelch delay from short and long
Squelch attenuator reduces suppression from strong signals
PC to transceiver and transceiver to transceiver cloning capability

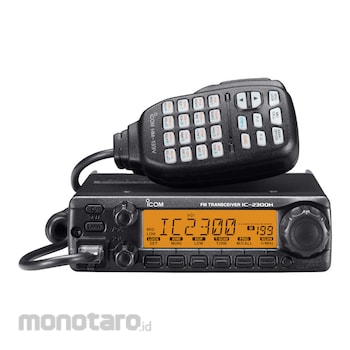

Icom RIG IC-2300H(Non-Eli) With Mic HM-133 1unit
Rp3.899.900
Persediaan
Spesifikasi Produk
| Model Number | IC-2300H(Non-Eli) |
|---|---|
| Unit | 1unit |
| Type of Emission | F2D, F3E (FM) |
| Power Supply Requirement (V DC) | 13.8 (±15%) |
| Antenna Impedance (ohm) | 50 (SO-239) |
| Operating Temperature Range (°C) | -10 to +60 |
| Dimensions (mm) | 140x40x162 |
| Current Drain Tx (65 W) (A) | 11 |
| Current Drain Rx Stand-by (A) | 0.4 |
| Current Drain Rx Max. Audio (A) | 1.5 |
| Maximum Frequency Deviation (Wide) (kHz) | ±5.0 |
| Maximum Frequency Deviation (Narrow) (kHz) | ±2.5 |
| Spurious Emissions | Less Than -60 dBc |
| Frequency Stability (ppm) | ±3 |
| Microphone Impedance (ohm) | 600 (8-Pin Modular) |
| Intermediate Frequencies (MHz) | 46.35 (450 kHz) |
| Adjacent Channel Selectivity (Wide) (kHz) | More Than 6 (at 6 dB), Less Than 14 (at 60 dB) |
| Adjacent Channel Selectivity (Narrow) (kHz) | More Than 3 (at 6 dB), Less Than 9 (at 55 dB) |
| Spurious Response Rejection (dB) | More Than 60 |
| Audio Output (W) | 4.5 typ. (10% dist. 4 Ω load) |
| External Speaker Connector | 2-Conductor 3.5 (d) mm (1⁄8inch)/4 Ω |
| Channel Capacity | 207 Channels (Including 6 Scan Edges, and 1 Call) |
| Berat (Kg) | 4.5 |
| Tanggal Produk Terdaftar | 12 January 2023 |
| Terakhir Diperbaharui | 23 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Icom IC-2300H Radio Communication Products retain the same basic features as its predecessor Icom IC-2200H, 65Watt output power, easy to use interface features, built in CTCSS and DTCS. Icom 2300 body itself is smaller in size than the Icom 2200. IC-2300H is quite tough on uneven roads. This radio rig has been tested and has passed the American military specifications of MIL-STD 810 G including shock, vibration and temperature tests. The sturdy aluminum chassis chassis provides effective heat dissipation and maintains RF output even during continuous transmission and in high duty cycles. The interface screen is quite simple. There is an LCD screen with 6 alphanumeric characters. There is a choice of yellow or green light colors. The bottom of the screen shows the function panel.Ketentuan dan Kondisi Barang
