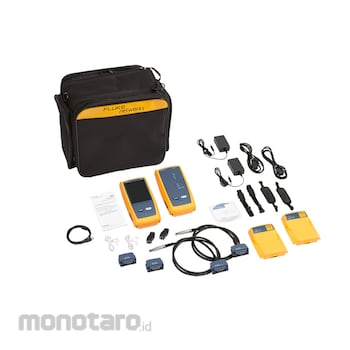

FLUKE Networks Alat Penganalisis Kabel DSX dengan Wifi DSX2-5000 AP 1GHZ 1set

Unique Features:
Versiv enables users to accomplish more than ever before with a cable tester, by accelerating every step of the testing process
LinkWare Live cloud service lets the Project Manager remotely set up the testers, monitor job progress and even location from any smart device
ProjX™ management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time
Taptive™ user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels
LinkWare PC management software provides unmatched analysis of test results and professional test reports
The DSX reduces the time required to fix cabling faults with dedicated diagnostics, a simple test that locates the problem

Standards:
Compliant with ANSI/TIA-1152-A Level 2G and proposed standard IEC 61935-1 Ed. 5 Level VI field tester accuracy requirements to 2000 MHz
Supports the complete suite of Resistance Unbalance standards needed for Power over Ethernet (PoE) –IEEE 802.3bt, ANSI/TIA/EIA-568, ISO/IEC 11801 series documents
TCL and ELTCTL measurements compliant to IEC 61935-1-1 (Draft)
Screen continuity along path of cabling

Performance:
Eight second Cat 6A test time contributes to the fastest way to gain certification
Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting
Manage up to 12,000 Cat 6A test results with full graphics
Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards and testing parameters
Integrated Wi-Fi allows you to easily upload results to LinkWareTM Live
Over 1 billion links reported on LinkWare PC management software

Manage up to 12,000 Cat 6A test results with full graphics
Managing the testing of multiple jobs with multiple teams, testers, and requirements is time consuming and a source of errors. Increasingly larger jobs make project organization more important than ever. The new ProjX management system on the DSX CableAnalyzer Series copper cable certifiers provides individual project files for all job specific details to be saved under a simple name, eliminating the need to re-enter job specific details after starting a project. This minimizes set-up errors or lost files when switching from one job to another or utilizing multiple testers on a single job. In addition, it provides test results by cable ID, merges any changes without duplicates and defaults to the last copper or fiber module installed. ProjX management system provides real time status to completion on each job with a 0-100% scale and gives the operator the option to isolate any test requiring a second look and helps to assure nothing is overlooked. The "Fix Later" selection creates a punch list or automatic to do list for correcting any workmanship issues. ProjX enables project managers and crew leaders to be truly efficient.

Capacitive touchscreen allows quick tester setup and supports all standards
Taptive user interface is easy enough for even the newest technician to perform tests across multiple media types and testing requirements. The capacitive Taptive user interface makes all jobs easily accessible from the menu screen. Touch the job you’re working on and the large display confirms the test that needs to be performed, animated instructions simplify setting the configuration making correct testing assured.
