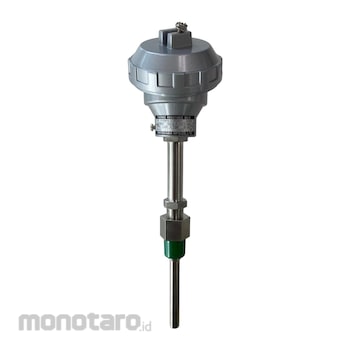

MYCOM Thermo Resistance Bulb Pt350M10S-B 0 to +150°C 1pc

Name: MYCOM Thermo Resistance Bulb Pt350M10S-B 0 to +150°C 1pc
Brand: MYCOM
SKU: S034755495
Price: 6799900 IDR
Availability: InStock

#Nomor SKU S034755495

MYCOM

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	Pt350M10S-B
Unit	1pc
Temperature Range (°C)	0 to +150
Input Sensor	Platinum RTD (Resistance Temperature Detector); Pt100 (JIS C 1604-1997) Class B , 3-wire connection
Loop Current (mA)	2-wire , DC4 20 (measuring ranges available)
Load Resistance (ohm)	Under 500 (DC24V Power Supply)
Accuracy (%)	Ambient Temperature +60 to -10°C : Within ±1 F.S. ; Ambient Temperature -11 to -30°C : Within ±2 F.S. ; (The error margin of the sensor is not included.)
Power (V)	DC24 ±15% ripple factor : within 5%
Insulation Resistance (MΩ)	DC500V : 20 or more
Operating Temperature (°C)	-30 to +60 (non-condensation)
Storage Temperature (°C)	-40 to +70 (non-condensation)
Relative Humidity (%RH)	35-90
Berat (Kg)	0.3
Tanggal Produk Terdaftar	19 December 2022
Terakhir Diperbaharui	17 June 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Open-circuit RTD connection
When terminal "A" connection is broken, Output current is approx. 32mA
When terminal "B" or "b" connection is broken, Output current is approx. 3.8mA

Zero Adjustment
The value of output current is adjusted extent of ±3°C using the trimmer on the Printed Circuit Board.

Printed circuit board
The both sides of Printed Circuit Board is molded by the resin.
The electronic parts are mounted on parts side and solder side.
The terminal plates are mounted on the solder side.
