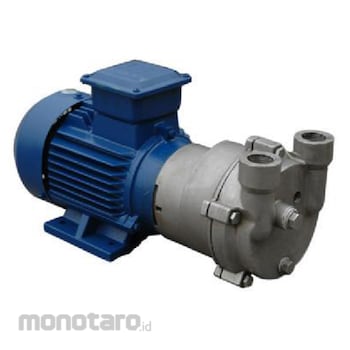

INNOVAC Liquid Ring Vacuum Pump 2BV2-070 1unit

Name: INNOVAC Liquid Ring Vacuum Pump 2BV2-070 1unit
Brand: INNOVAC
SKU: S034730751
Price: 36999900 IDR
Availability: OutOfStock

#Nomor SKU S034730751

INNOVAC

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	2BV2-070
Unit	1unit
Casing Material	Cast Iron
Impeller	SS304
Curve No.	70V
Maximum Suction Capacity (m³/minute)	1.33
Maximum Suction Capacity (m³/hour)	80
Ultimate Vacuum (MPa)	0.097
Motor Power (kW)	2.35
Speed (rpm)	2860
Operating Liquid Flow Rate (L/minute)	3
Noise (dBA)	66
Ultimate Vacuum (mbar)	33
Berat (Kg)	66.0
Tanggal Produk Terdaftar	13 December 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

2BV Series Liquid Ring Vacuum Pump and Compressor
2BV series liquid ring vacuum pumps are suitable for pumping the gases and steam. Its suction pressure can reach
33mbar (abs) (i.e. 97 % vacuum degree).If the transformer oil is used as the operating liquid, these pumps are called
oil ring vacuum pump and the suction pressure can reach 6.7mbar (abs) (i.e. 99 % vacuum degree). So the oil ring
vacuum pumps can replace the reciprocated vacuum pumps completely.
When the liquid ring vacuum pumps work under the condition near the ultmost vacuum for a long time, it is necessary
to couple with the cavitation protection pipe in order to get rid of the screaming so as to protect the pump. When the
2BV pumps are used as compressor, it should check the discharge pressure and select suitable motor power because
the motor power will be increasing along with the exhausting pressure.

Peringatan

Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya. Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.

Feature

Features:
1.The direct connection of the motor and pump with the same shaft saves space and convenient
installation
2. Adopting mechanical seal as standard configuration,which can eliminate leakage and make the
maintenance convenient.
3. operate steadily and the noise low to 62 dB
4. All the components are processed precisely by the CNC lathe, and the mechanical seal adopts
international famous brand such as John Crane or Bergman to ensure the precision.
5. Take NTN or NSK international famous brand bearing.
6. 2BV series liquid ring pump can be combined with ZJ series Roots vacuum pump to make roots
and liquid ring vacuumsystem. The ultimate vacuum can be 5pa. The 2BV liquid ring vacuum
pump also can be coupled with separator and heat exchanger to make closed circulation unit,
which improved the safety and reliability by one pump working, one pump backup.
