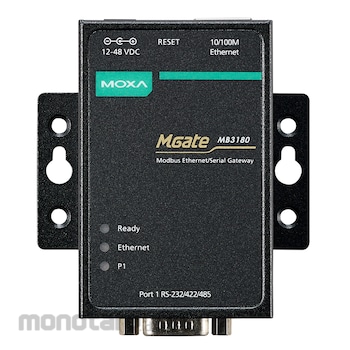

MOXA Standard Serial-to-Ethernet Modbus Gateways MGate MB3180 1unit

Name: MOXA Standard Serial-to-Ethernet Modbus Gateways MGate MB3180 1unit
Brand: MOXA
SKU: S034682852
Price: 5099900 IDR
Availability: InStock

#Nomor SKU S034682852

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	MGate MB3180
Unit	1unit
No. of Ports	1
10/100BaseT(X) Ports (RJ45 Connector)	Auto MDI/MDI-X connection
Magnetic Isolation Protection (kV)	1.5 (built-in)
Industrial Protocols	Modbus TCP Client (Master) Modbus TCP Server (Slave)
Configuration Options	Web Console (HTTP) Device Search Utility (DSU) MGate Manager MCC Tool Telnet Console
Management	ARP DHCP Client DNS HTTP SNMPv1/v2c/v3 TCP/IP Telnet UDP
MIB	RFC1213, RFC1317
Authentication	Local Database
Encryption	HTTPS, AES-128, AES-256, SHA-256
Connector	DB9 male
Serial Standards	RS-232/422/485 (software selectable)
Baudrate (bps to kbps)	50 to 921.6
Flow Control	DTR/DSR RTS Toggle (RS-232 only) RTS/CTS
Housing	Metal
IP Rating	IP30
Dimensions (mm)	22x75x80 (with ears)
Input Voltage (VDC)	12 to 48
Input Current (mA)	200 @ VDC
Power Connector	Power Jack
Operating Temperature (°C)	0 to 55
Berat (Kg)	0.3
Tanggal Produk Terdaftar	05 December 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Whether wired or wireless, single or multiple serial ports, Moxa’s Modbus TCP gateway solutions connect Modbus RTU, DNP3, J1939, and PROFIBUS devices to Modbus TCP networks, making configuration, troubleshooting, and conversion quick and easy.
