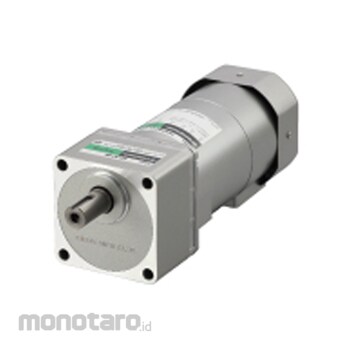

Orientalmotor Motor with Electromagnetic Brake 5RK90GCM Series 5RK90GCM-6 1pc
Rp6.899.900
Persediaan
Spesifikasi Produk
| Model Number | 5RK90GCM-6 |
|---|---|
| Unit | 1pc |
| Mounting Angle Dimension (mm) | 90 |
| Capacitor | Product name: CH60BFAUL, Capacitance: 6.0μF, Rated voltage: 450VAC |
| Overheat Protector Type | Thermal protector (automatic reset type) |
| Shaft Material | Iron |
| Electromagnetic Brake | Yes |
| Output Power (W) | 90 |
| Starting Torque (Motor Shaft) (mN.m) | Single-phase 220V/50Hz: 655; Single- phase 230V/50Hz: 720 |
| Rated Torque/Rated Speed (Motor Shaft) (mN.m/(rpm)) | Single-phase 220V/50Hz: 710/1220; Single-phase 230V/50Hz: 710/1220 |
| Reduction Ratio | 6 |
| Rotation Speed when Gearhead is Attached (rpm) | Single-phase 220V/50Hz: 250; Single-phase 230V/50Hz: 250 |
| Allowable Torque of Gearhead Output Shaft (N m) | Single-phase 220V/50Hz: 3.8; Single- phase 230V/50Hz: 3.8; |
| Allowable Moment of Inertia J (kg.m²) | Instantaneous stop: 39.6x10ˉ⁴ |
| Type | Cable |
| Shaft/Gear Type | Parallel shaft Combination type |
| Time Rating (hour) | 0.5 |
| Direction of Rotation | Same direction as motor |
| Electromagnetic Brake Part Model | Non-excitation actuation type |
| Electromagnetic Brake (V/Hz/A/W) | Single phase 220/50/0.04/6; Single phase 230/50/0.04/6; |
| Voltage/Frequency/Current (V/Hz/A) | Single phase 220/50/0.77; Single phase 230/50/0.78 |
| Electromagnetic Brake Static Friction Torque (Motor Shaft) (mN.m) | 500 |
| Berat (Kg) | 5.4 |
| Tanggal Produk Terdaftar | 07 November 2022 |
| Terakhir Diperbaharui | 23 September 2025 |
