Accessory: Motor, Control Circuit, Gearhead, Extension Cable (3 m), External Speed Potentiometer (with signal line), Mounting Screws, Parallel Key, Operating Manual;
Component Name: BLEM23-GFS (Motor); GFS2G200 (Gearhead); BLED3S (Control Circuit)

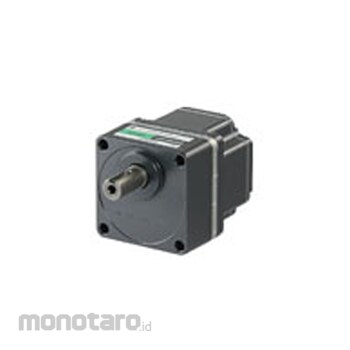

Orientalmotor Brushless DC Motor BLE23S200S Series AC Type BLE23S200S-3 1pc
Rp9.499.900
Persediaan
Spesifikasi Produk
| Model Number | BLE23S200S-3 |
|---|---|
| Unit | 1pc |
| Allowable Torque (N m) | 6 (0.5-15r/min); 5.4 (20r/min) |
| Rated Torque Motor Shaft (N m) | 0.1 |
| Rated Rotation Speed Motor Shaft (rpm) | 3000 |
| Starting Torque Motor Shaft (N m) | 0.2 |
| Included Cable (m) | 3 |
| Rated Output Power (W) | 30 |
| Power Supply Input Rated Voltage (V) | Three-Phase 200-240AC |
| Power Supply Rated Input Frequency (Hz) | 50/60 |
| Power Supply Input Rated Input Current (A) | 0.45 |
| Power Supply Input Maximum Input Current (A) | 1.2 |
| Permissible Load Inertia J (kg.m²) | 5000x10ˉ⁴ |
| Speed Regulation (Load) | ±0.5% max.: Conditions 0-rated torque, rated speed, rated voltage, normal temperature |
| Frame Size (mm) | 60 |
| Speed Setting Method | Select one of the following methods.;Internal speed potentiometer;External speed potentiometer (included) : PAVR-20KZ (20 kΩ, 1/4 W);External DC voltage : 0-5 VDC or 0-10 VDC, 1 mA min. |
| Rotor Inertia J (kg.m²) | 0.087x10ˉ⁴ |
| Speed Range (rpm) | 0.5-20 |
| Gear Ratio | 200 |
| Electromagnetic Brake | Without |
| Shaft/Gear Type | Combination Type Parallel Shaft Gearhead |
| CE marking | Affixed |
| Berat (Kg) | 2.1 |
| Tanggal Produk Terdaftar | 03 November 2022 |
| Terakhir Diperbaharui | 23 September 2025 |
