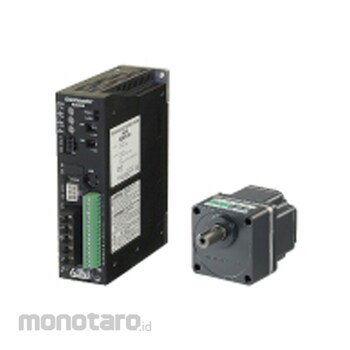

Orientalmotor Brushless DC Motor BLE23S200S Series AC Type 1pc

Name: Orientalmotor Brushless DC Motor BLE23S200S Series AC Type 1pc
Brand: Orientalmotor
SKU: S034465592
Price: 8999900 IDR
Availability: OutOfStock

#Nomor SKU S034465592

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	BLE23S200S
Unit	1pc
Mounting Angle Dimension (mm)	60
Rated Output Power (W)	30
Allowable Moment of Inertia J (kg.m²)	5000x10ˉ⁴
Rotation Speed Setting Method	Depends on one of the following: Setting by internal speed setting device;Setting by external speed setting device (accessory): PAVR-20KZ (20 kΩ, 1/4 W);Setting by external DC voltage: 0 to 5 V DC or 0 to 10 V DC switching, 1 mA or more
Rotor Moment of Inertia J (kg.m²)	0.087x10ˉ⁴
Speed Control Range (rpm)	0.5-20
Reduction Ratio	200
Allowable Torque (N m)	6 (0.5-15r/min) ; 5.4 (20r/min)
Power Input Rated Voltage (V)	Three-phase 200-240
Input Power Frequency (Hz)	50/60
Power Input Frequency Tolerance	±5%
Power Input Rated Input Current (A)	0.45
Power Input Maximum Input Current (A)	1.2
Rated Torque Motor Shaft (N m)	0.1
Rated Rotation Speed Motor Shaft (rpm)	3000
Acceleration/Deceleration Time (s)	Setting by acceleration/deceleration time potentiometer: 0.2 to 15 (at 3000r/min no load)
Starting Torque Motor Shaft (N m)	0.2
Multi-Speed Setting Method	2nd speed: 1st speed by internal speed setting device and 1st speed by external speed setting device (20kΩ, 1/4W) or external DC voltage (0 to 5V DC or 0 to 10V DC)
Electromagnetic Brake	None
Shaft/Gear Type	Combination type parallel shaft gearhead
Berat (Kg)	1.8
Tanggal Produk Terdaftar	03 November 2022
Terakhir Diperbaharui	23 September 2025
