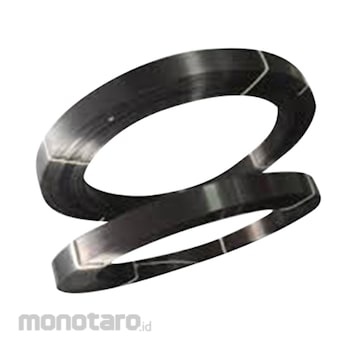

Sika Carbodur S812 1roll(25m)

#Nomor SKU S034337202
Wishlist
Rp23.999.900
Persediaan

Spesifikasi Produk

Unit 1roll(25m)
Length (m) 25
Color Carbon fibre reinforced polymer with an epoxy matrix, black
Width (mm) 80
Thickness (mm) 1.2
Cross Section Area (mm²) 96
Shelf Life Unlimited, provided the storage conditions are met.
Storage Conditions Store in original, unopened, sealed and undamaged packaging in dry conditions at temperatures of max. +50 °C. Protect from direct sunlight.
Density (g/cm³) 1.60
Fibre Volume Content (%) >68
Laminate Tensile Strength (N/mm²) Mean value: 3100; 5 % fractile-value: 2900
Laminate Modulus of Elasticity in Tension (N/mm²) Mean value: 165000
Laminate Elongation at Break in Tension (%) Mean value: 1.80
Glass Transition Temperature (°C) > 100
Berat (Kg) 1.0
Tanggal Produk Terdaftar 12 October 2022
Terakhir Diperbaharui 27 May 2025
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
Sika CarboDur plates are pultruded carbon fibre reinforced polymer (CFRP) laminates, designed for strengthening concrete, timber, masonry, steel and fibre reinforced polymer structures.
Sika CarboDur plates are bonded onto the structure as externally bonded reinforcement using Sikadur-30 epoxy resin based adhesive for normal.
Please refer to the relevant Product Data Sheet for more detailed information about these adhesives.
Feature
- Non-corroding
- Very high strength
- Excellent durability and fatigue resistance
- Unlimited lengths, no joints required
- Low system thickness, simple execution of plate intersections or crossings
- Easy transportation (rolls)
- Lightweight, very easy to install, especially overhead (without temporary support)
- Minimum preparation of plate, applicable in several layers
- Smooth edges without exposed fibres as result of production by pultrusion
- Extensive Testing and Approvals available from many countries worldwide
Use
Sika CarboDur systems are used to improve, increase or repair the performance and resistance of structures for:
Increased Load Carrying Capacity:
- Increasing the load capacity of floor slabs, beams and bridge sections
- For the installation of heavier machinery
- To stabilise vibrating structures
- For changes in building use
Damage to structural elements due to:
- Deterioration of the original construction materials
- Steel reinforcement corrosion
- Accidents (Vehicle impact, earthquakes, fire)
Improvement of serviceability and durability:
- Reduced deflection and crack width
- Stress reduction in the steel reinforcement
- Improved fatigue resistance
Change of the structural system:
- Removal of walls and / or columns
- Removal of floor and wall sections to create access / openings
Resistance to possible events:
- Increased resistance to earthquakes, impact or explosion etc.
To repair design or construction defects such as:
- Insufficient / inadequate reinforcement
- Insufficient / inadequate structural depth
