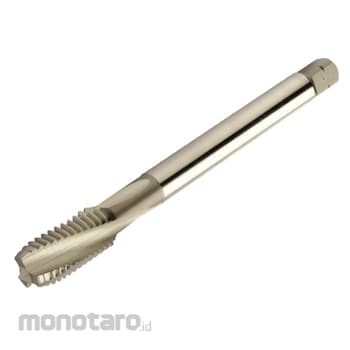

Sandvik CoroTap 300 Cutting Tap with Spiral Flutes DIN/ANSI (Tap Ulir) T300-NM100AF-1/4 D150 1pc
Rp689.900
Persediaan
Spesifikasi Produk
| Model Number | T300-NM100AF-1/4 D150 |
|---|---|
| Unit | 1pc |
| Coolant entry style code (CNSC) | 0: Without Coolant |
| Threads per inch (TPI) | 28 |
| Thread tolerance class (TCTR) | 2B |
| Coolant exit style code (CXSC) | 0: No Coolant Exit |
| Neck diameter (DN) (mm) | 4.55 |
| Connection diameter (DCON) (mm) | 6.477 |
| Functional length (LF) (mm) | 80 |
| Premachined Hole Diameter (PHD) (mm) | 5.5 |
| Flute Count (NOF) | 3 |
| Material classification level 1 (TMC1ISO) | N |
| Thread Diameter Size (TDZ) | UNF 1/4-28 |
| Thread Diameter (TD) (mm) | 6.35 |
| Blind Hole Function Property (BHFP) | True |
| Threading Length (THL) (mm) | 15 |
| Thread Back Taper Property (THBTP) | False |
| Threading Chamfer Type (THCHT) | C |
| Substrate (SUBSTRATE) | HSS-E-PM |
| Usable length (LU) (mm) | 25.585 |
| Basic standard group (BSG) | DIN/ANSI |
| Flute Helix Angle (FHA) (degree) | 15 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 30 September 2022 |
| Terakhir Diperbaharui | 26 January 2026 |
