IES5028 series are 28-port 100M/Gigabit layer 2 managed industrial Ethernet switches. This series include eight types of products and provide 100M copper port, 100M fiber port and Gigabit SFP slot. It adopts rack mounting to meet the requirements of different application scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, Port
Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration,
Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network
management system interface, simple and convenient operation.
RST button can instantly restore factory defaults. When power supply or port occurs link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields
Standard & Protocol: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3z for 1000Base-X, IEEE 802.3x for Flow Control, IEEE 802.1D for Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1Q for VLAN, IEEE 802.1p for Class of Service

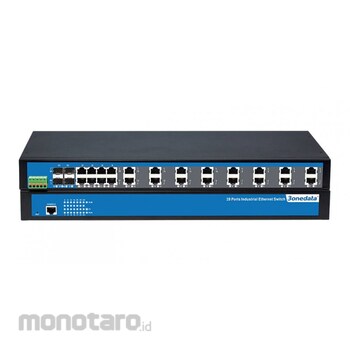

3onedata Industrial Rackmount Switches Layer 2 IES5028-4GS Managed Switches, 4 GE Ports + 24 FE Ports 1unit
Rp41.999.900
Persediaan
Spesifikasi Produk
| Model Number | IES5028-4GS |
|---|---|
| Unit | 1unit |
| 4 Gigabit SFP Port | 4 |
| Dimensions (mm) | 441.6x207.9x44.6 |
| Security | Classification of User Permissions, Port Alarm, E-mail Alarm |
| Switch Function | 802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control |
| Unicast / Multicast | Static Multicast, GMRP, IGMP-Snooping |
| Redundancy Protocol | SW-Ring, STP/RSTP |
| Time Management | SNTP |
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator |
| Transmission Mode | Store and forward |
| MAC Adress | 8K |
| Packet Buffet Size (Mbit) | 3 |
| Backplane Bandwidth | 12.8G |
| Switch Delay (µs) | <10 |
| AC Power Supply (VAC/DC) | 100-240 |
| Power Consumption | No-Load (7.4 @220VAC), Full Load (13.1 @220VAC) |
| Operating Temperature Range (°C) | -40 to 75 |
| Storage Temperature Range (°C) | -40 to 85 |
| Relative Humidity (%) | 5-95 |
| Housing | IP30 protection, metal |
| Certification | CE, FCC, RoHS |
| Berat (Kg) | 3.9 |
| Tanggal Produk Terdaftar | 07 September 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SNMPv1/v2c is used for network management of various levelsRMON can be used for efficient and flexible network monitoring
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting.
DHCP server and client can be used for distributing IP address
File management is convenient for the device rapid configuration and online upgrading
Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
Port statistics can be used for port real-time traffic statistics
User password can conduct user hierarchical management to improve the device management security
Mac port lock can enhance network flexibility and security
E-mail alarm is convenient for immediate fault discovery during remote management
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain the broadcast, unknown multicast and unknown unicast
VLAN is used for simplifying network planning
Port trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
IGMP Snooping, GMRP and static multicast can be used for filtering multicast traffic to save the network bandwidth
SW-Ring and STP/RSTP can achieve network redundancy, preventing network storm
