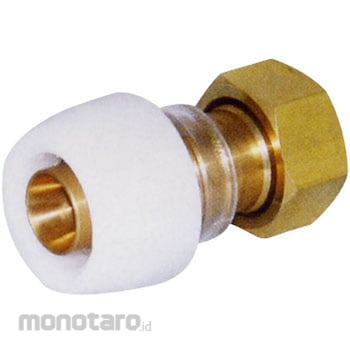

Bridgestone Push Master union Female Adapter NAU10J 1pc
Rp289.900
Persediaan
Spesifikasi Produk
| Model Number | NAU10J |
|---|---|
| Unit | 1pc |
| Material | Lead-free copper alloy or CAC406C (bronze) deleading treatment, etc. |
| Nominal Diameter A | 10 |
| Shape | Straight |
| Size | NAU10J |
| Thread Diameter M | G1/2 |
| Thread Size | G1/2 |
| Type | PVC / resin pipe fittings |
| Dimension A (mm) | 24.0 |
| Dimensions d (mm) | Φ24.4 |
| Dimension L1 (mm) | 58.5 |
| Dimension L2 (mm) | 16.0 |
| M Code | 35597335 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 26 July 2022 |
| Terakhir Diperbaharui | 01 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Tighten with proper torque to prevent packing damage. The standard tightening torque for non-asbestos packing should be as follows. When performing an airtight test, make sure that the packing contains water to prevent seepage leakage. G1 / 2: 25Nm, G3 / 4: 45Nm, G1: 70Nm (when using the EPDM gasket is recommended 4 ~ 6Nm) Never use other than Bridgestone polybutene pipes.
