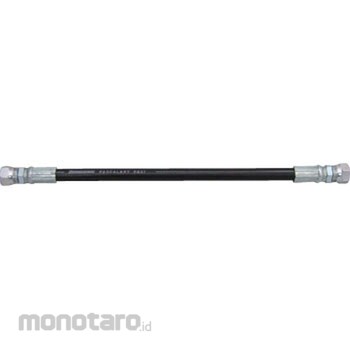

Bridgestone Pass Color PA2816 (Both ends F) PA2816-420 F+F 1pc

Name: Bridgestone Pass Color PA2816 (Both ends F) PA2816-420 F+F 1pc
Brand: Bridgestone
SKU: S032773101
Price: 1799900 IDR
Availability: InStock

#Nomor SKU S032773101

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	PA2816-420 F+F
Unit	1pc
Mass (g/m)	1750
Material	Inner tube / oil resistant synthetic rubber, jacket / wear resistant weather resistant synthetic rubber, fitting / SS / SC equivalent steel, galvanized / chromated
Maximum Operating Pressure (MPa)	27.5
Minimum Bending Radius (mm)	220
Minimum Bursting Pressure (MPa)	110
Recommended Ambient Temperature (°C)	-40 to +70 (oil), 0 to +70 (water)
Reinforcing Layer	4S
Approximate Mass (g)	Clasp / 515
Suitable fluid	Mineral hydraulic oil, water
Thread Size	G1
Connection Thread	Parallel female thread for pipe (Female 30° sheet)
Dimension X (mm)	41
Dimension Y (mm)	36
Fitting length (L) (mm)	99
Fluid Temperature Range (°C)	-40 to +100 (oil), 0 to +60 (water)
Hose Inner Diameter (Φmm)	25.4
Hose Outer Diameter (Φmm)	36.7
Length (mm)	420
Length L (mm)	420
M Code	70375768
Berat (Kg)	1.5
Tanggal Produk Terdaftar	26 July 2022
Terakhir Diperbaharui	04 April 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Long life and high fatigue resistance Compact hydraulic piping with a small bending radius A wide range of products suitable for pump rated pressure
JIS K6349-3 (High pressure rubber hose) JIS B8360 (High pressure rubber hose assembly) Compliant product For general hydraulic piping

Use

For general hydraulic piping
