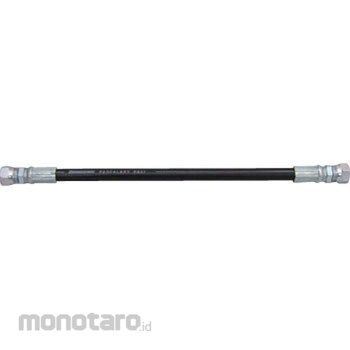

Bridgestone Pass Color PA0312 (Both ends F) PA0312-610 F+F 1pc

Name: Bridgestone Pass Color PA0312 (Both ends F) PA0312-610 F+F 1pc
Brand: Bridgestone
SKU: S032679922
Price: 979900 IDR
Availability: InStock

#Nomor SKU S032679922

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	PA0312-610 F+F
Unit	1pc
Mass (g/m)	620
Material	Inner tube / oil resistant synthetic rubber, jacket / weather resistant synthetic rubber, cap / SS / SC equivalent steel, galvanized / chromate treatment
Maximum Operating Pressure (MPa)	3.5
Minimum Bending Radius (mm)	135
Minimum Bursting Pressure (MPa)	14
Recommended Ambient Temperature (°C)	-40 to +70 (oil), 0 to +70 (water)
Reinforcing Layer	4C
Approximate Mass (g)	Base / 315
Suitable fluid	Mineral hydraulic oil, water
Thread Size	G3/4
Connection Thread	Parallel female thread for pipe (Female 30° sheet)
Dimension X (mm)	36
Dimension Y (mm)	30
Fitting length (L) (mm)	83
Fluid Temperature Range (°C)	-40 to +100 (oil), 0 to +60 (water)
Hose Inner Diameter (Φmm)	19
Hose Outer Diameter (Φmm)	31.4
Length (mm)	610
Length L (mm)	610
M Code	70348066
Berat (Kg)	1.5
Tanggal Produk Terdaftar	25 July 2022
Terakhir Diperbaharui	01 April 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Long life and high fatigue resistance Compact hydraulic piping with a small bending radius A wide range of products suitable for pump rated pressure
JIS K6349-3 (High pressure rubber hose) JIS B8360 (High pressure rubber hose assembly) Compliant product For general hydraulic piping

Use

For general hydraulic piping
