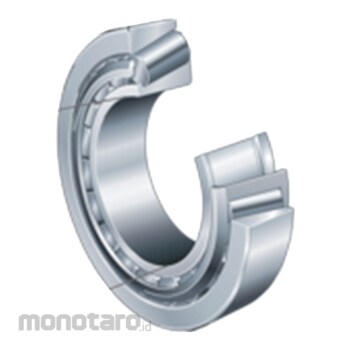

FAG Tapered Roller Bearings T7FC070-XL 1pc

#Nomor SKU S032592580

Spesifikasi Produk

Model Number	T7FC070-XL
Unit	1pc
Total Width T (mm)	39
Limiting Speed nG (rpm)	5800
Inner Ring Width (B) (mm)	35.5
Basic Dynamic Load Rating, Radial (Cr) (N)	208000
Basic Static Load Rating, Radial (C0r) (N)	237000
Fatigue Load Limit, Radial (Cur) (N)	38000
Maximum Diameter of Housing Shoulder (Da max) (mm)	126
Bore Diameter (D) (mm)	70
Minimum Operating Temperature (Tmin) (°C)	-30
Outside Diameter D (mm)	140
Maximum Diameter of Shaft Shoulder (da max) (mm)	81
Outer Ring Width C (mm)	27
Thermal Speed Rating (nϑr) (1/minute)	4150
Minimum Diameter of Shaft Shoulder (db min) (mm)	90
Minimum Axial Space (Ca) (mm)	6
Minimum Axial Space (Cb) (mm)	12
Maximum Fillet Radius of Shaft (ra max) (mm)	3
Minimum Chamfer Dimension of Inner Ring Back Face (r1,2 min) (mm)	3
Minimum Chamfer Dimension of Outer Ring Back Face (r3, 4 min) (mm)	3
Guidance Rib Diameter of Inner Ring (d1) (mm)	108.8
Berat (Kg)	7.1
Tanggal Produk Terdaftar	21 July 2022
Terakhir Diperbaharui	27 May 2025
